eMOTO Stomp Ebox Dragster RS - Orange - Ready to Ride

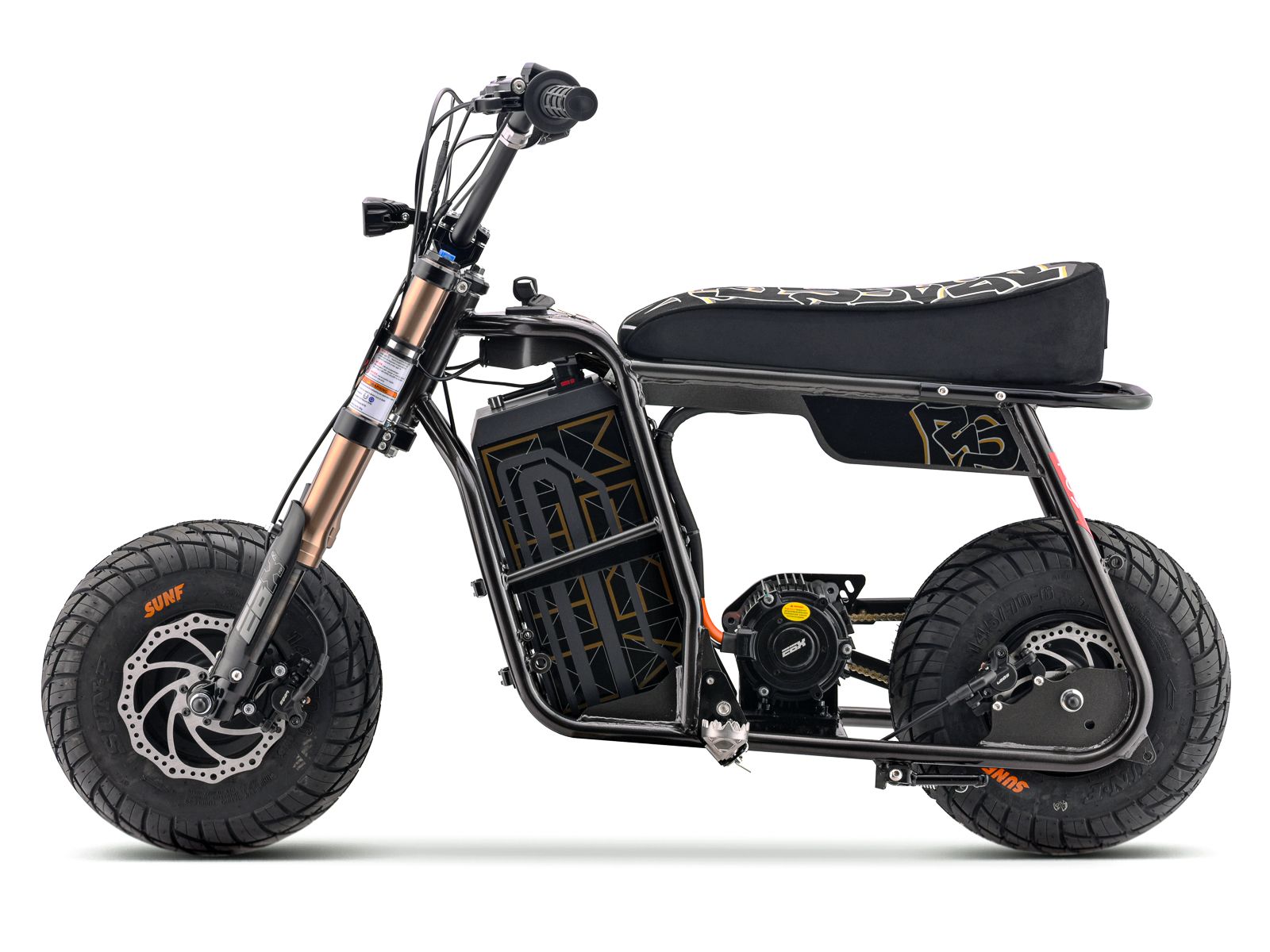

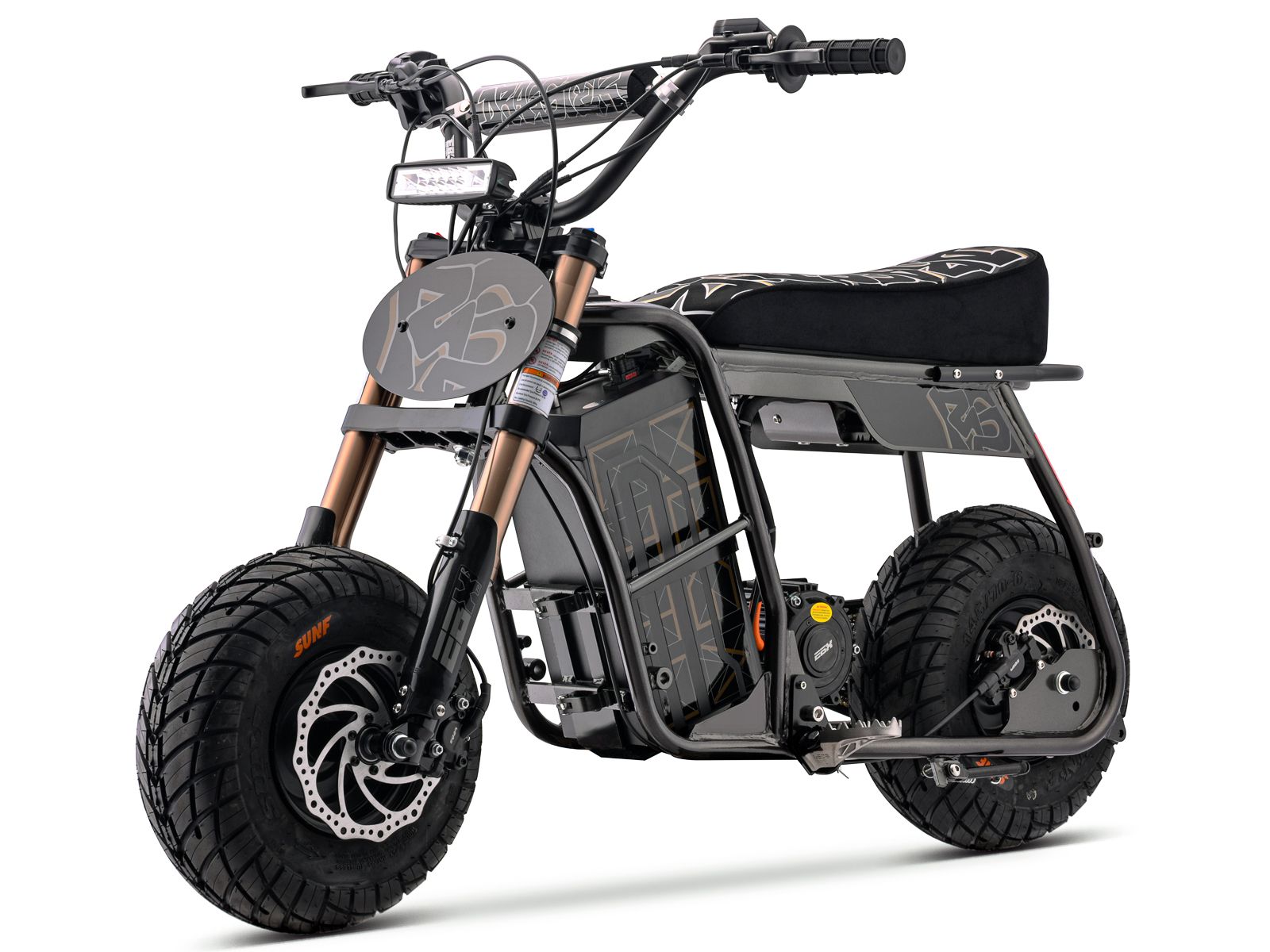

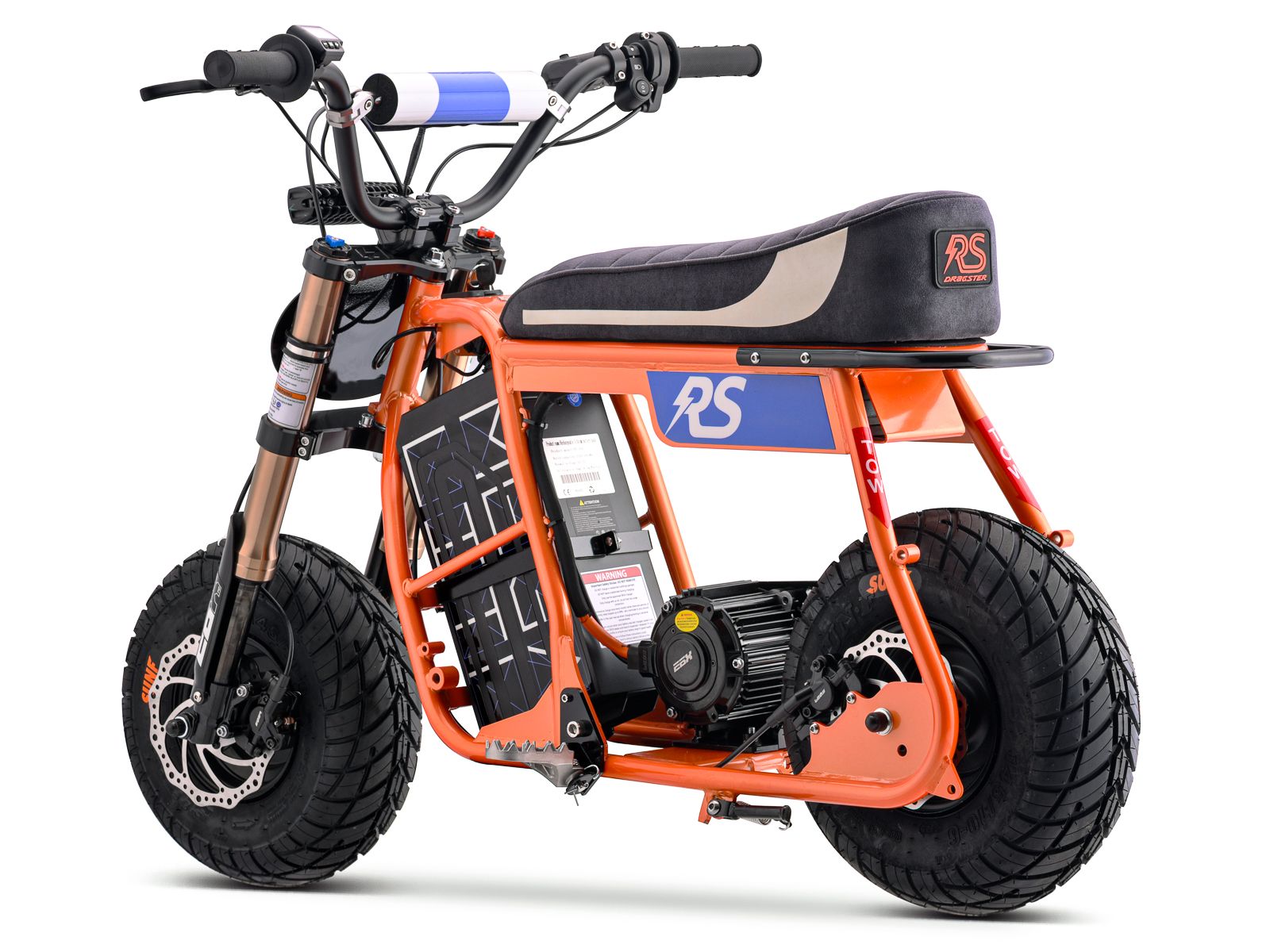

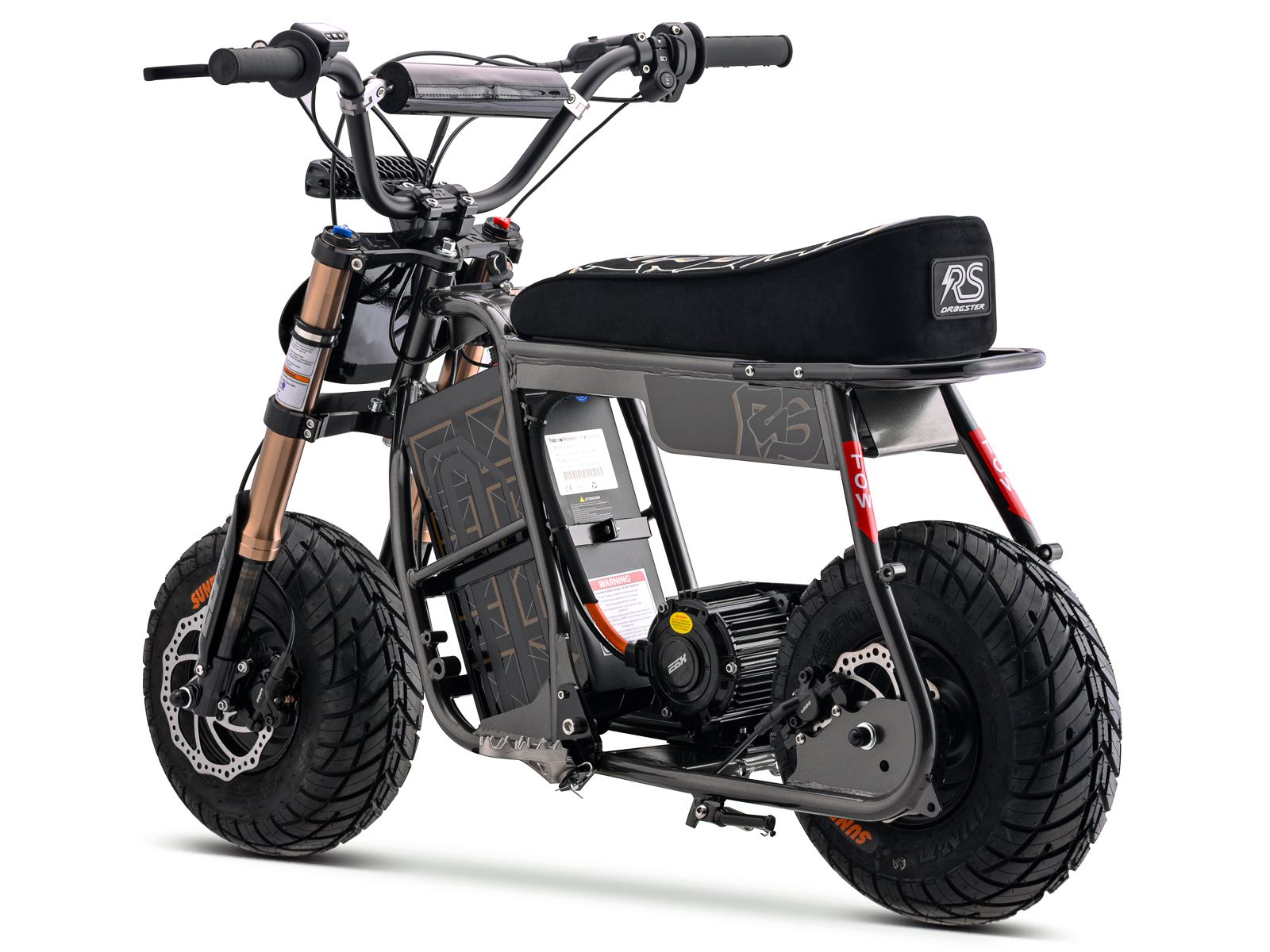

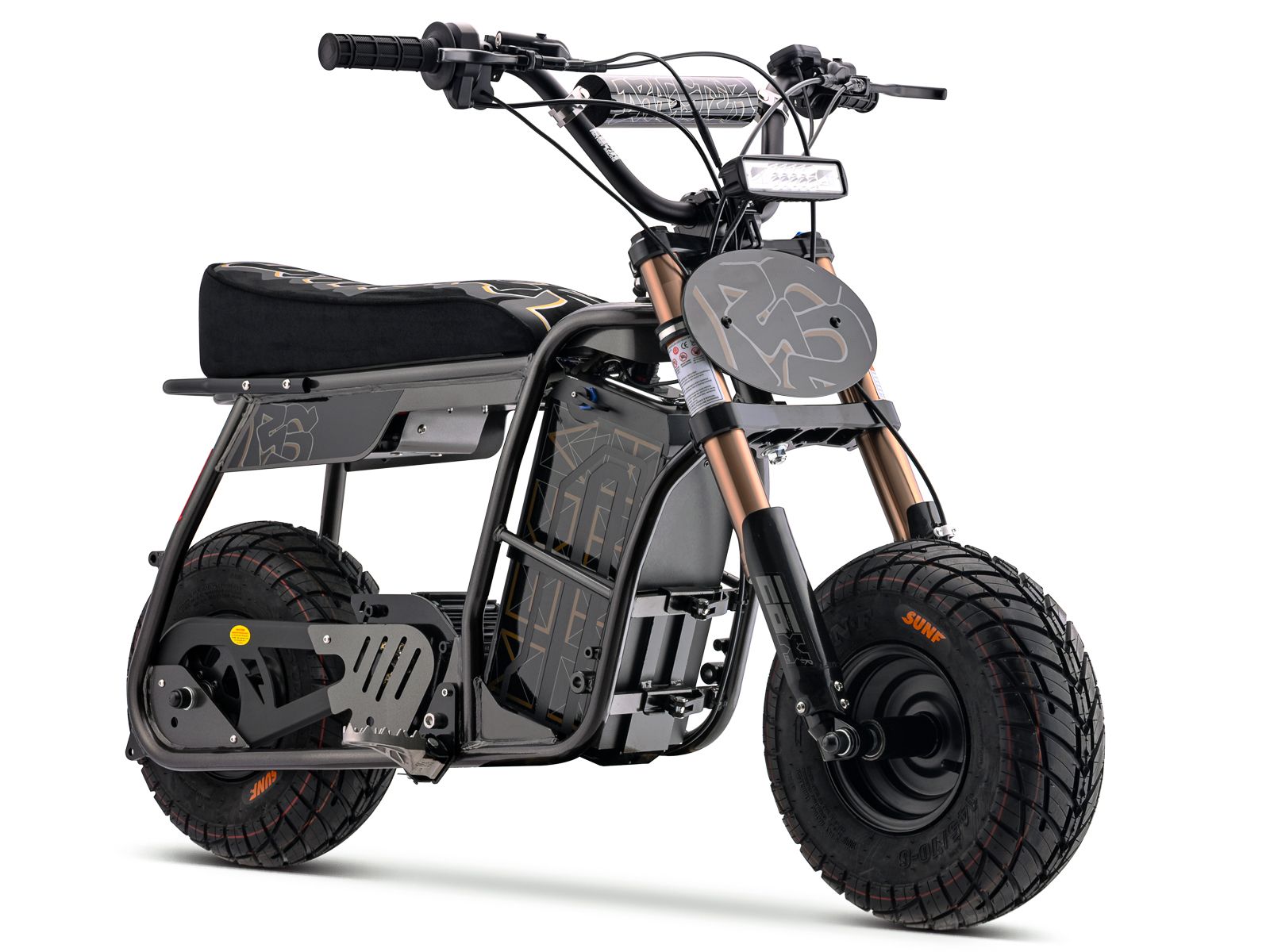

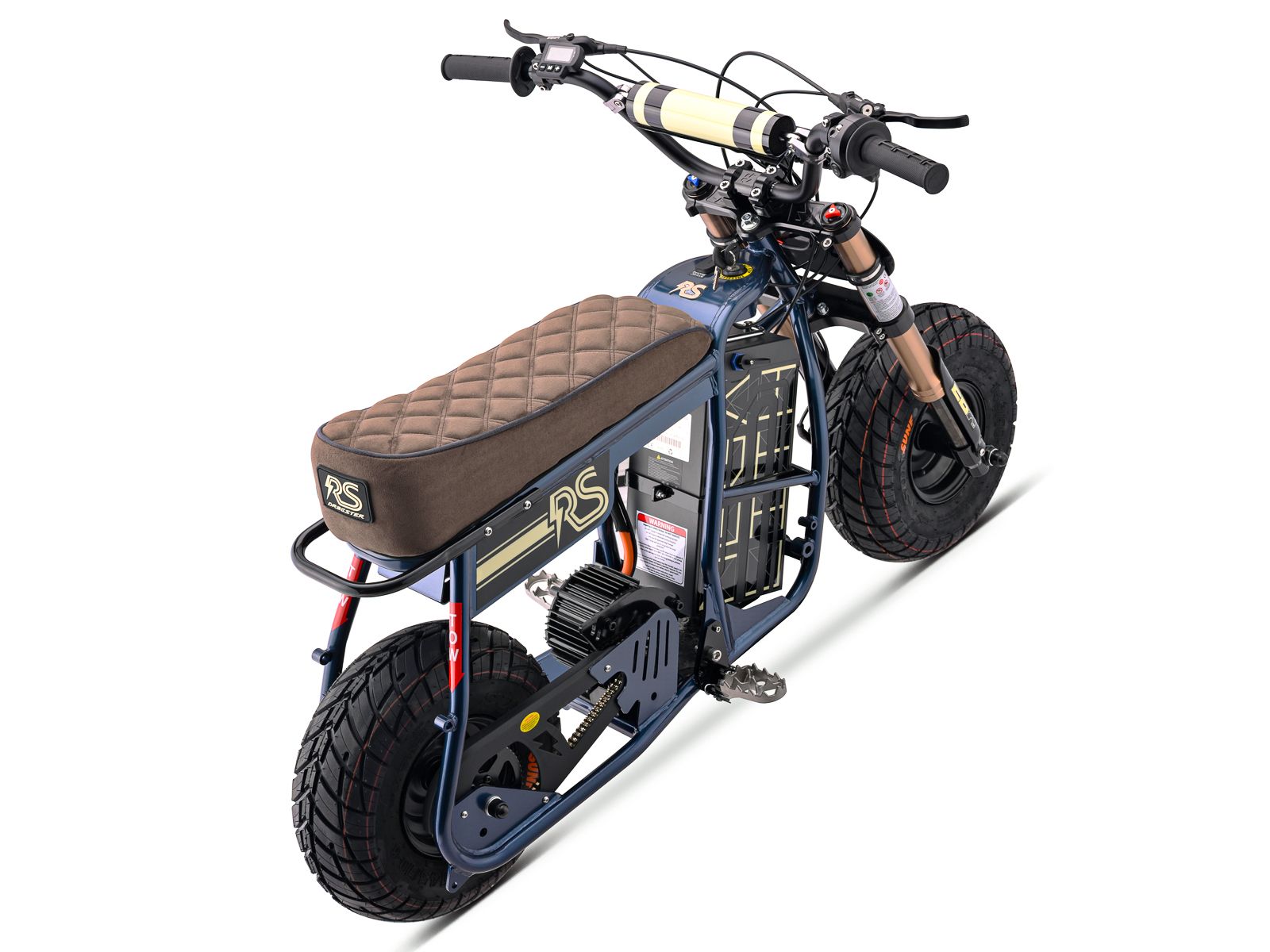

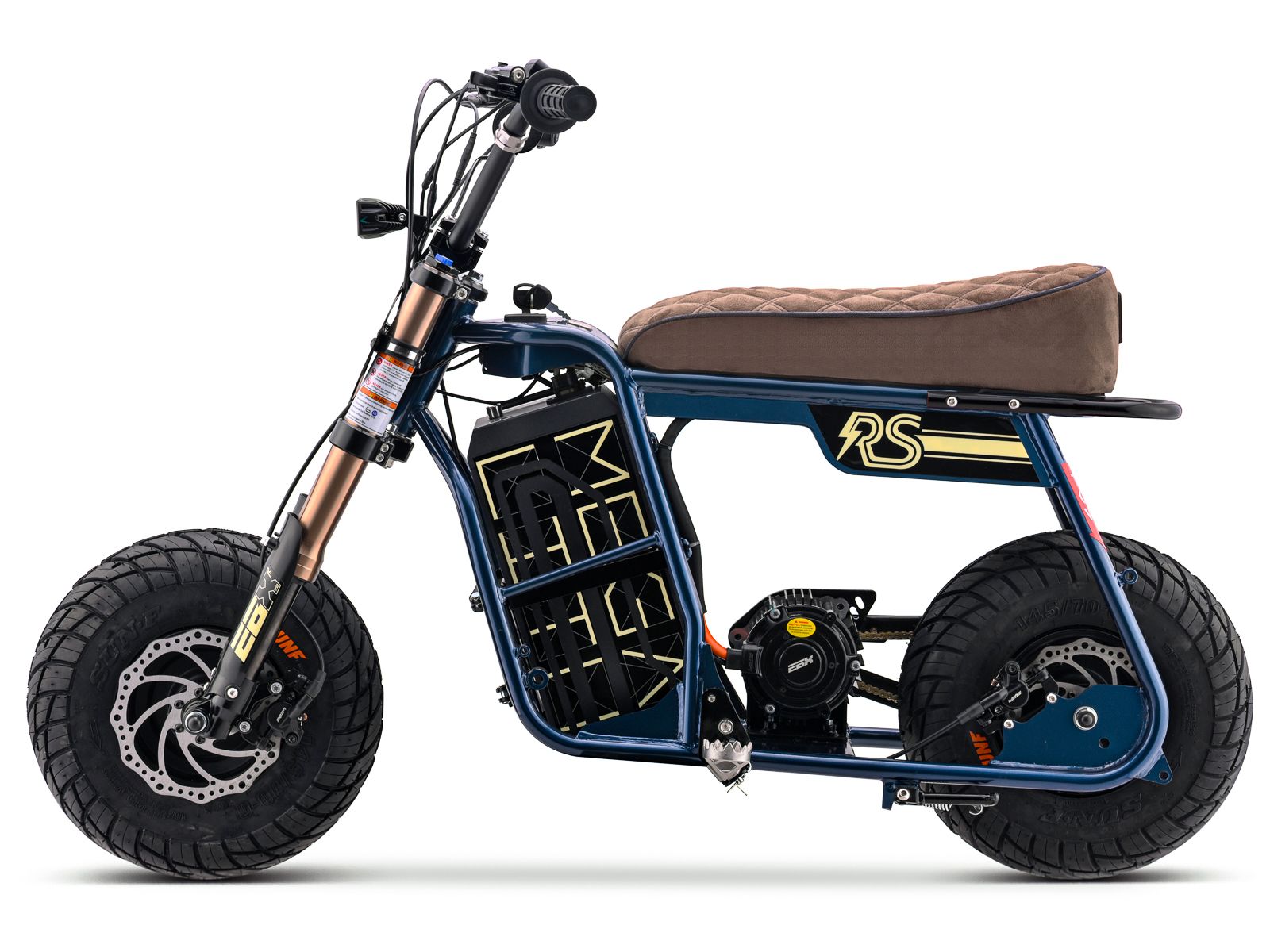

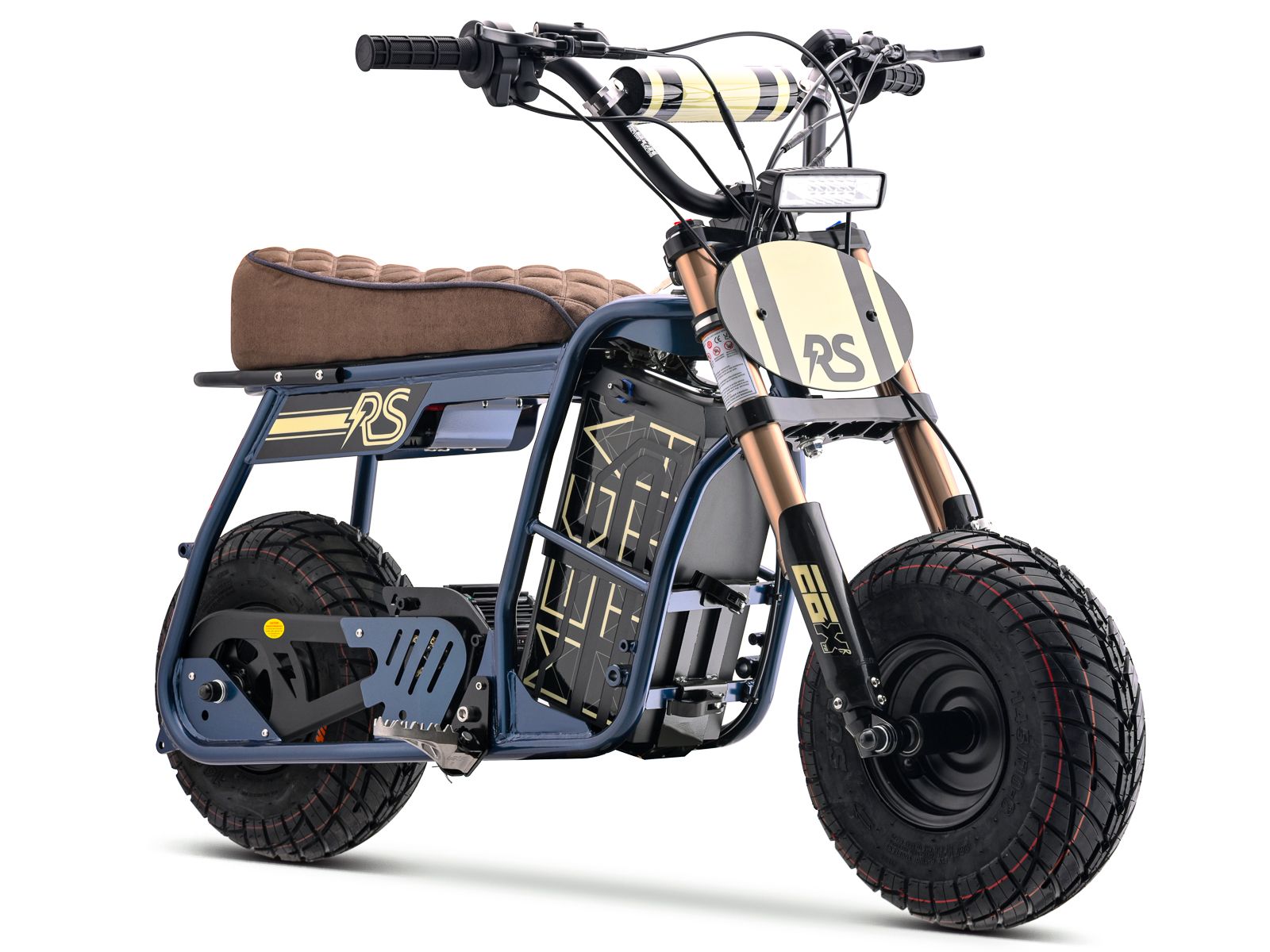

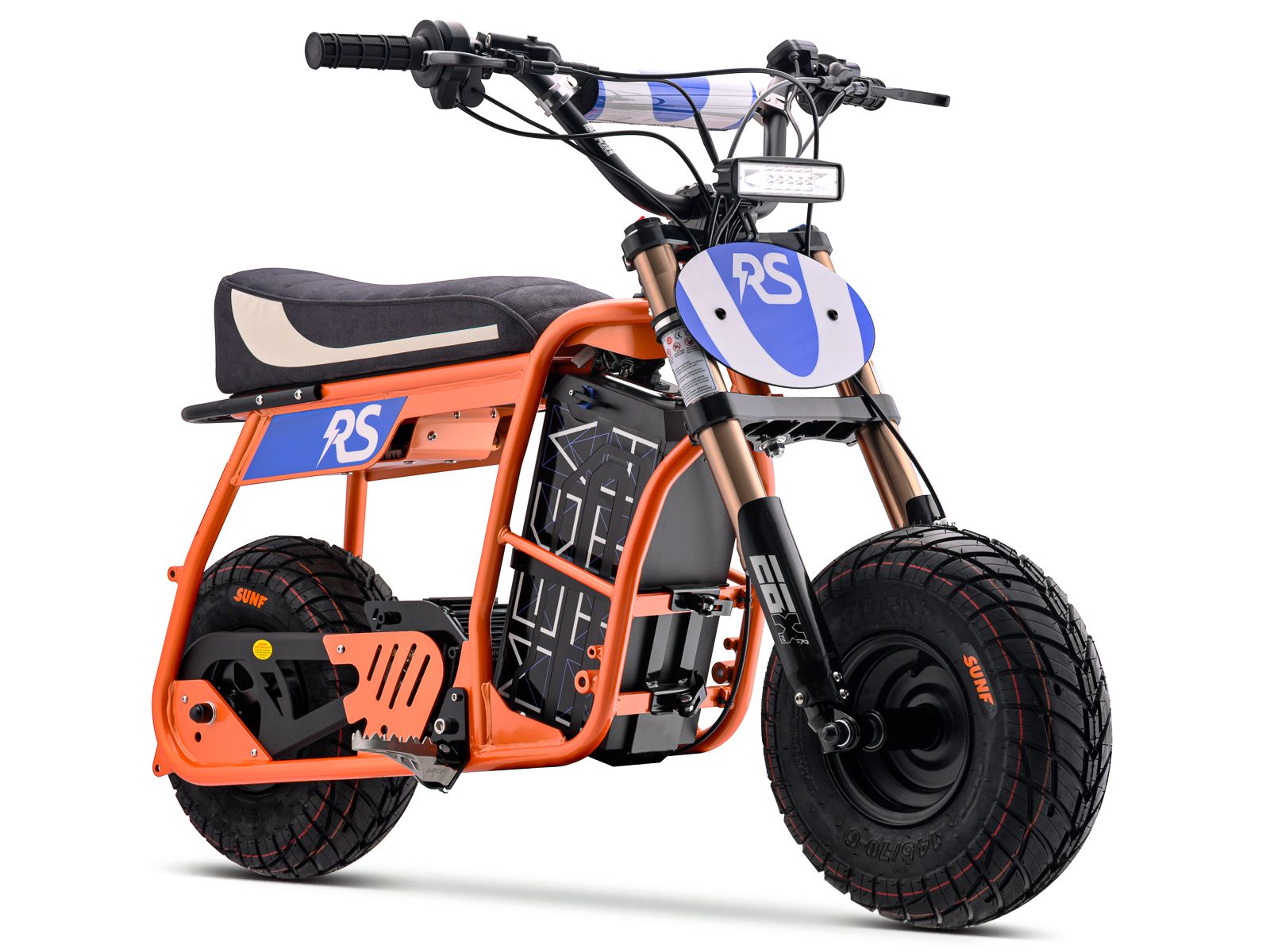

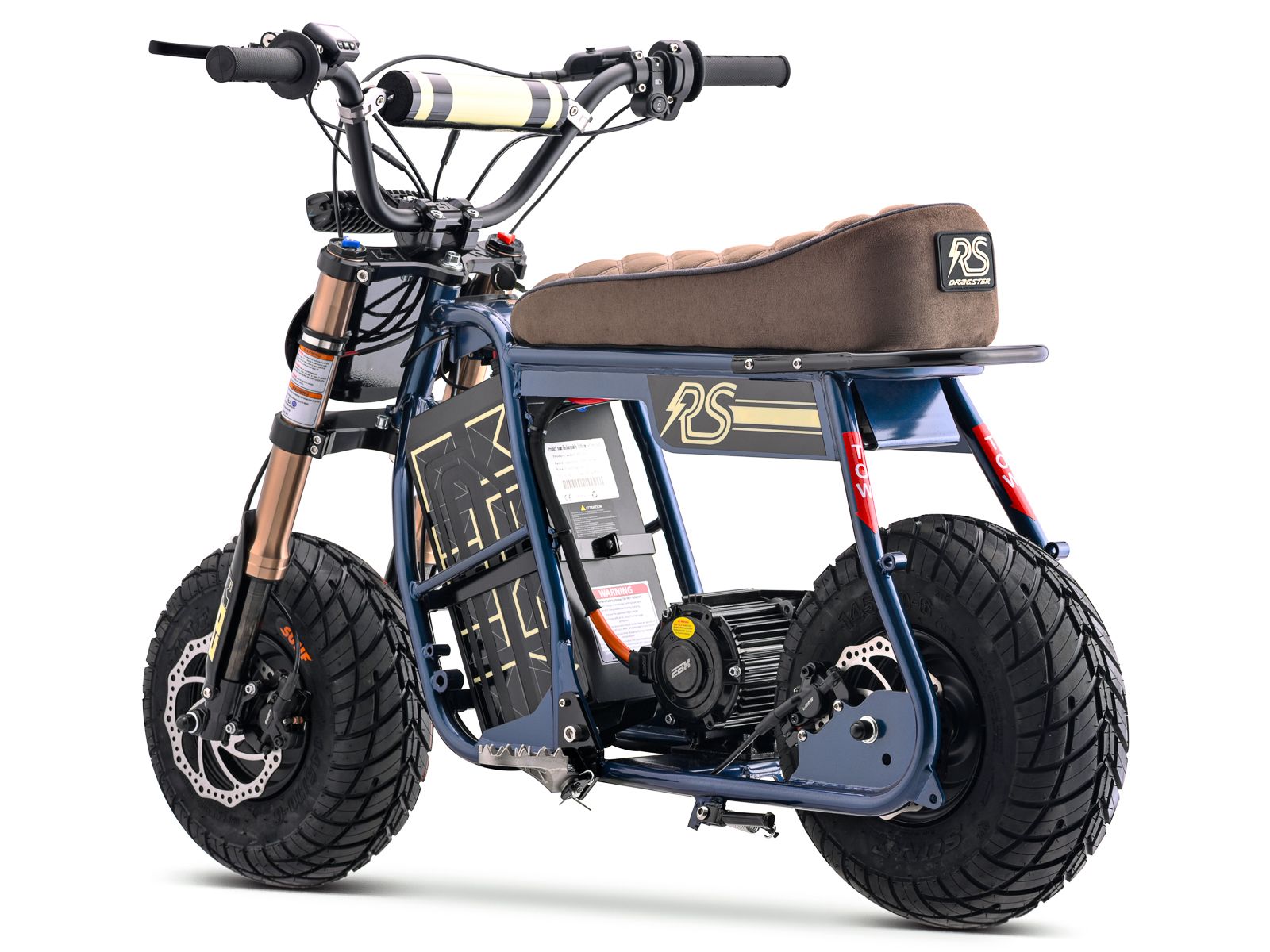

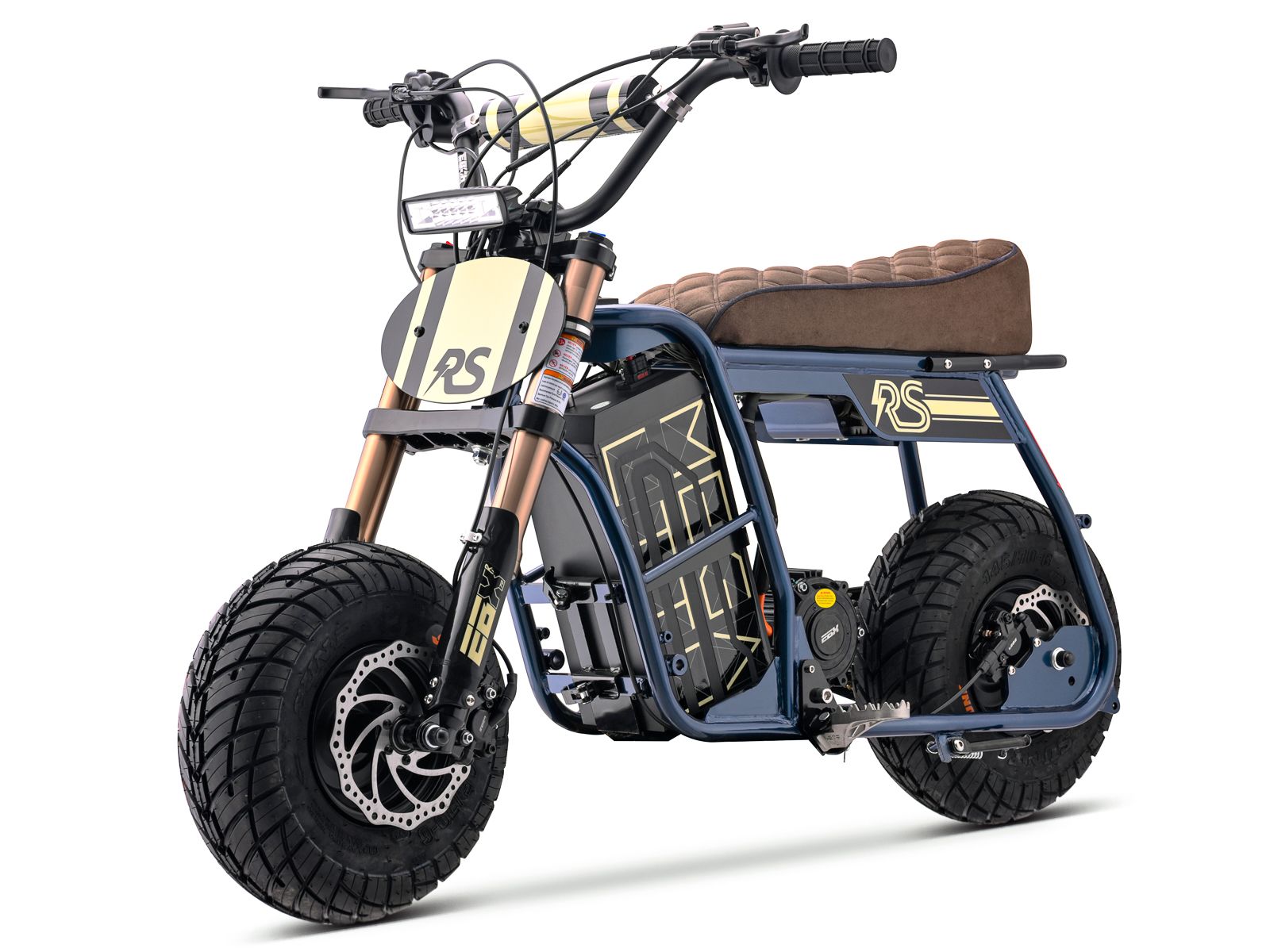

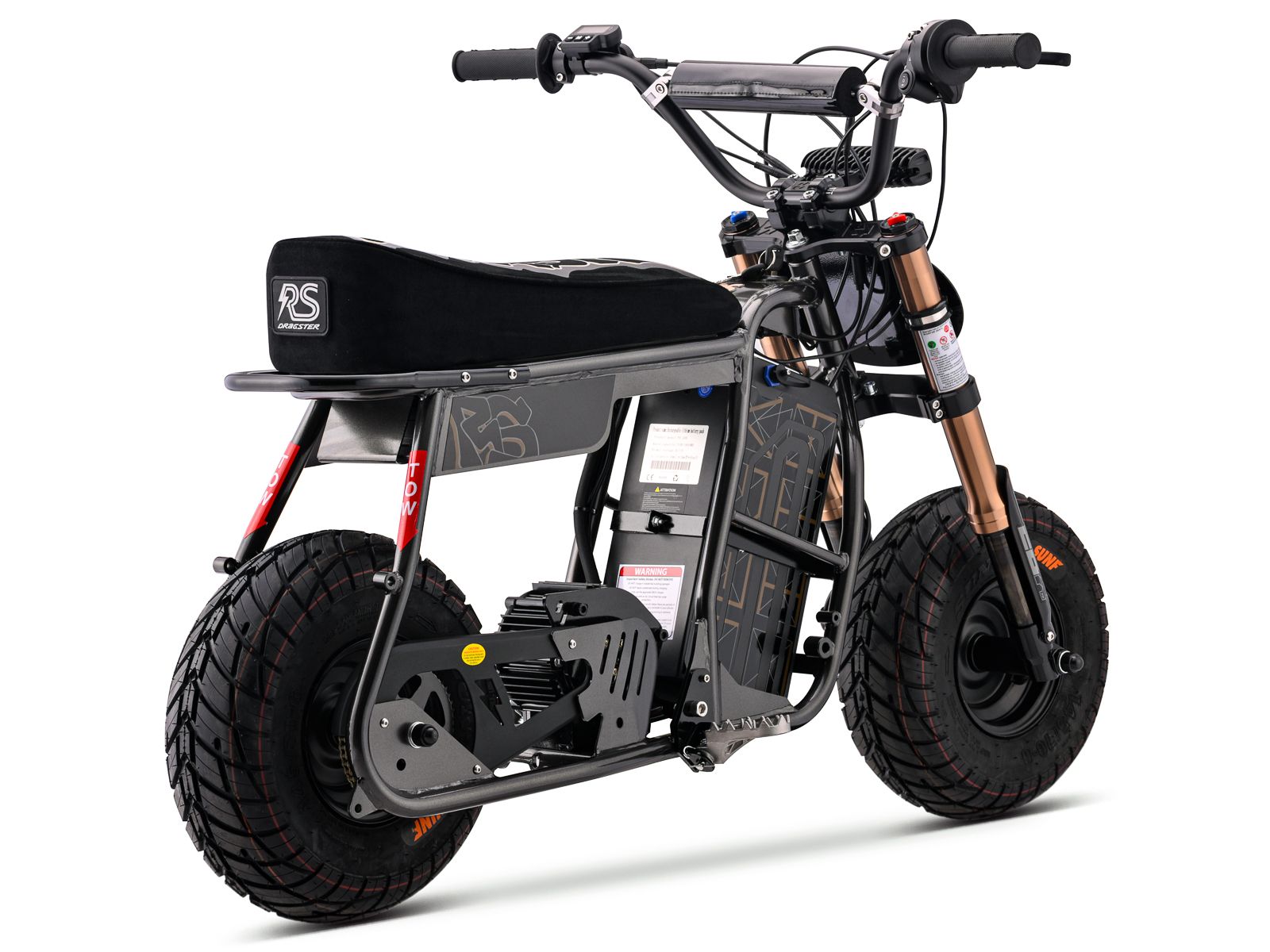

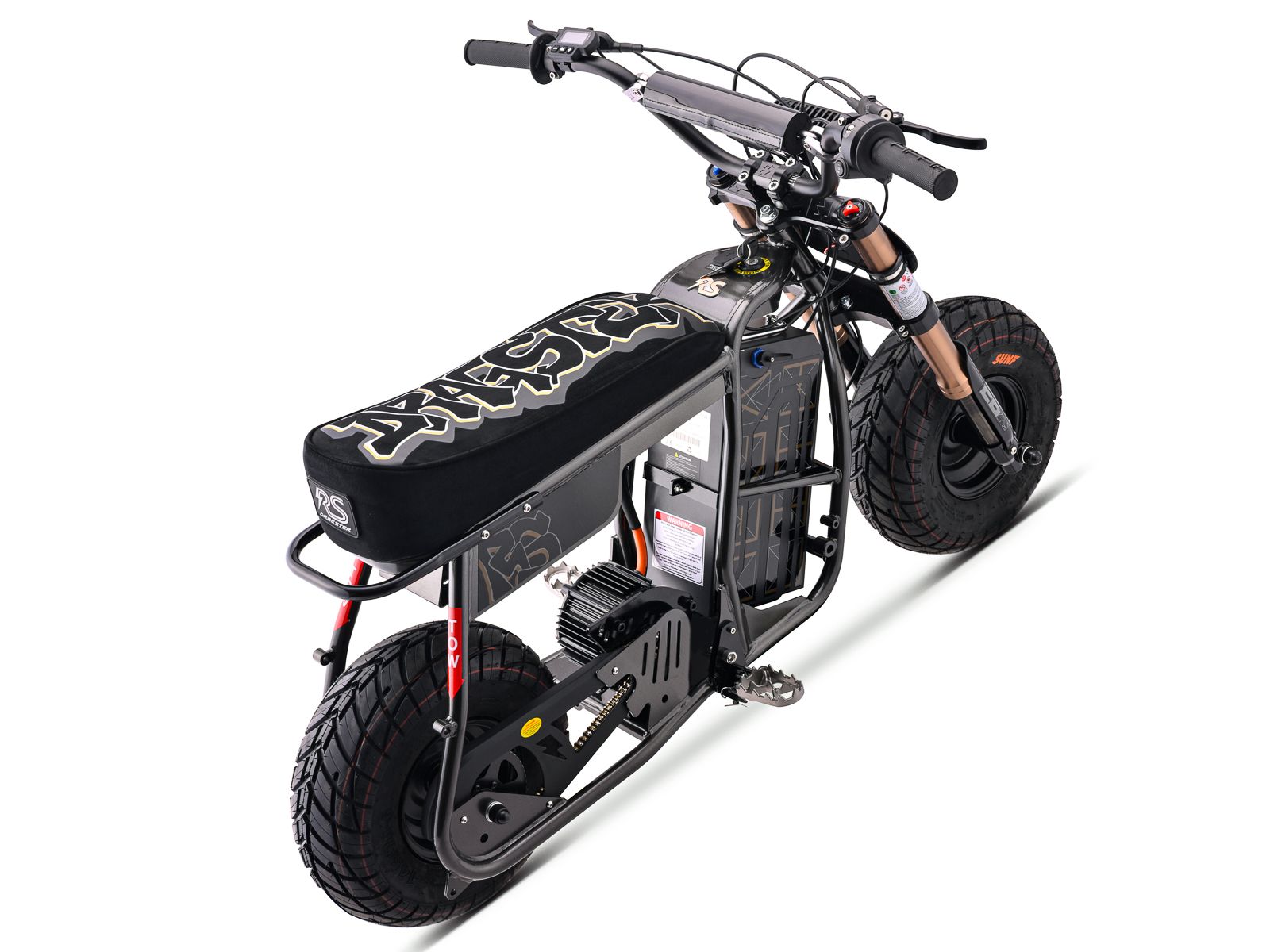

Stomp Ebox Dragster RS - Orange - Ready to Ride Electric Bike
Stomp Ebox authorized dealer in San Diego & EscondidoEscondido eBike Super Shop serves the Escondido, San Diego, and greater Southern California community with local pickup support as well as shipping service.
The Stomp Ebox Dragster RS - Orange - Ready to Ride is a compact electric bike built for riders who want an easy, stylish way to handle short trips, neighborhood cruising, and everyday errands. Powered by a responsive motor with responsive power delivery and electric assist, it delivers approachable performance up to city-friendly speeds, while a practical battery system and 28-31 miles (45-50Km) help support regular day-to-day riding. Its compact proportions help keep the ride manageable and approachable. compact wheels and city-friendly proportions help the bike stay practical for everyday use.
Note: Wheelie bar not included with eMOTO. Wheelie bar available here.
Key Features
- 72V EBX PMSM motor with encoder: Temperature feedback + encoder-equipped PMSM design with 5.4KW rated power and 6.3KW peak power (8.5hp), up to 9,000 max RPM.
- High-output power system: 80 Amp Fardriver controller paired with a new 72V 25Ah battery featuring BMS 21700 cells potted in a steel case, QS8 connector, and air breaker switch.

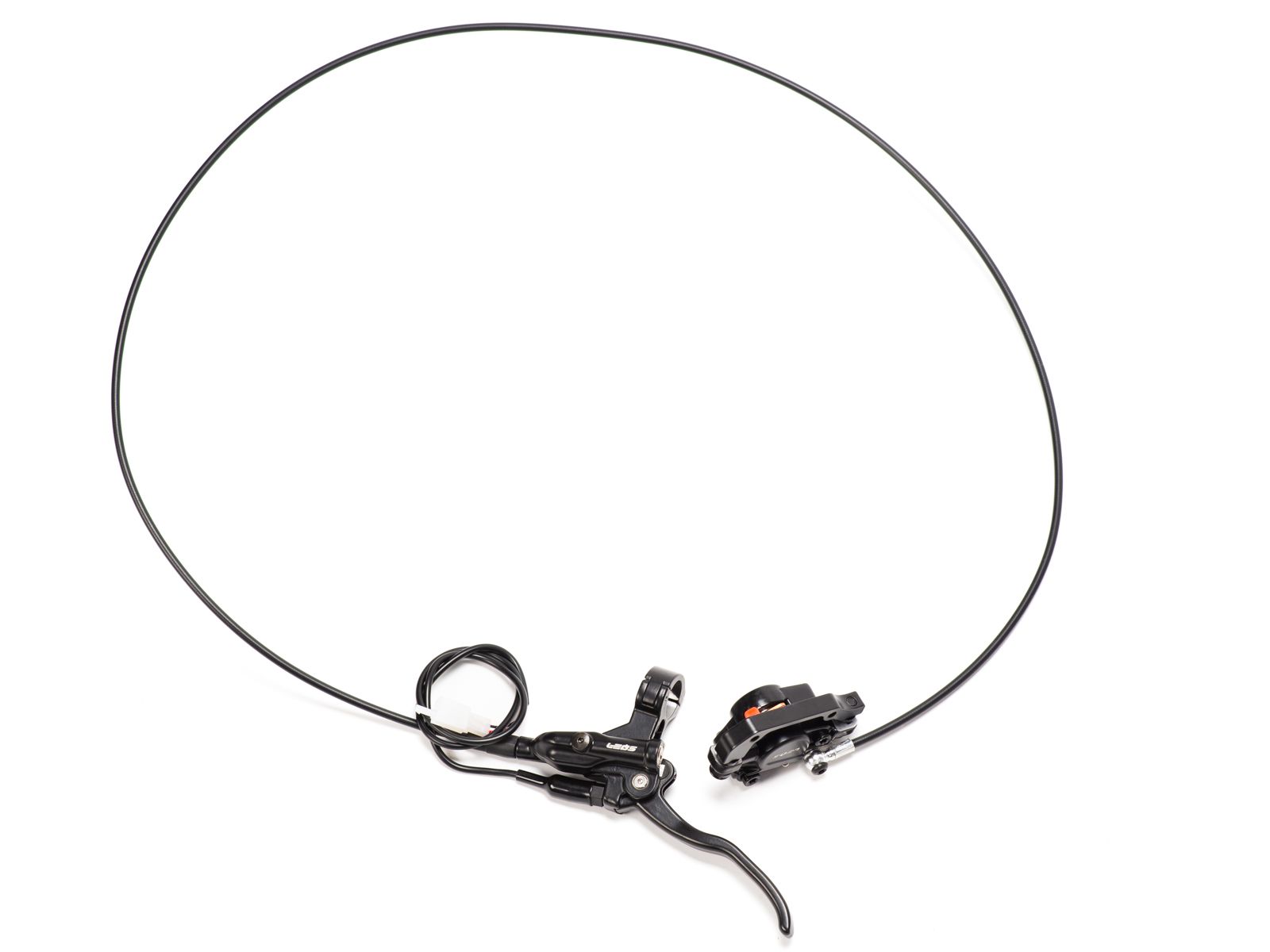

- High-spec braking package: Hydraulic disc e-moto brakes with wavey rotors—180mm front (6 bolt, 48mm BCD) and 160mm rear (6 bolt, 48mm BCD).
- Inverted suspension + CNC hardware: 100mm travel inverted forks with bronze anodised fork legs and black hardened stanchions, plus billet 6061 T6 CNC machined triple clamps and 35mm rise bar risers (Ø22.2).
- Smart TFT display: TFT odometer display with 3 speed modes and fault code analysis software.
- Compact 6" wheel setup: 6" front and rear wheels with 145/70-6 SUNF fast SM tyres.
- Performance drivetrain: Uprated performance gold 219H 108L chain with 10T front / 55T rear gearing.
- Street-ready touches: Integrated LED headlight and switch, plus USB A + C charging port.
Specifications
| Feature | Details |
|---|---|
| Frame type | Full duplex |
| Frame construction | High strength steel, removable motor plate, integrated chain tensioner, loop tail design, quick release battery system, 2-point foot peg position mounts, frame mounted stunt peg compatible. |
| Fork | 100mm Travel Inverted forks with bronze anodised fork legsand black hardened stanchions |
| Fork Clamps | Billet 6061 T6 CNC machined triple clamps |
| Bar Risers | 6061 T6 CNC machined 35mm rise Ø22.2 |
| Handlebar | 6061 T6 29.5" x 7", with 3 piece crossbar and bar pad |
| Seat | Luxurious suede RS wedge seat |
| Front wheel size | 6" |
| Rear wheel size | 6" |
| Front tyre | 145/70-6 SUNF fast SM tyres |
| Rear tyre | 145/70-6 SUNF fast SM tyres |

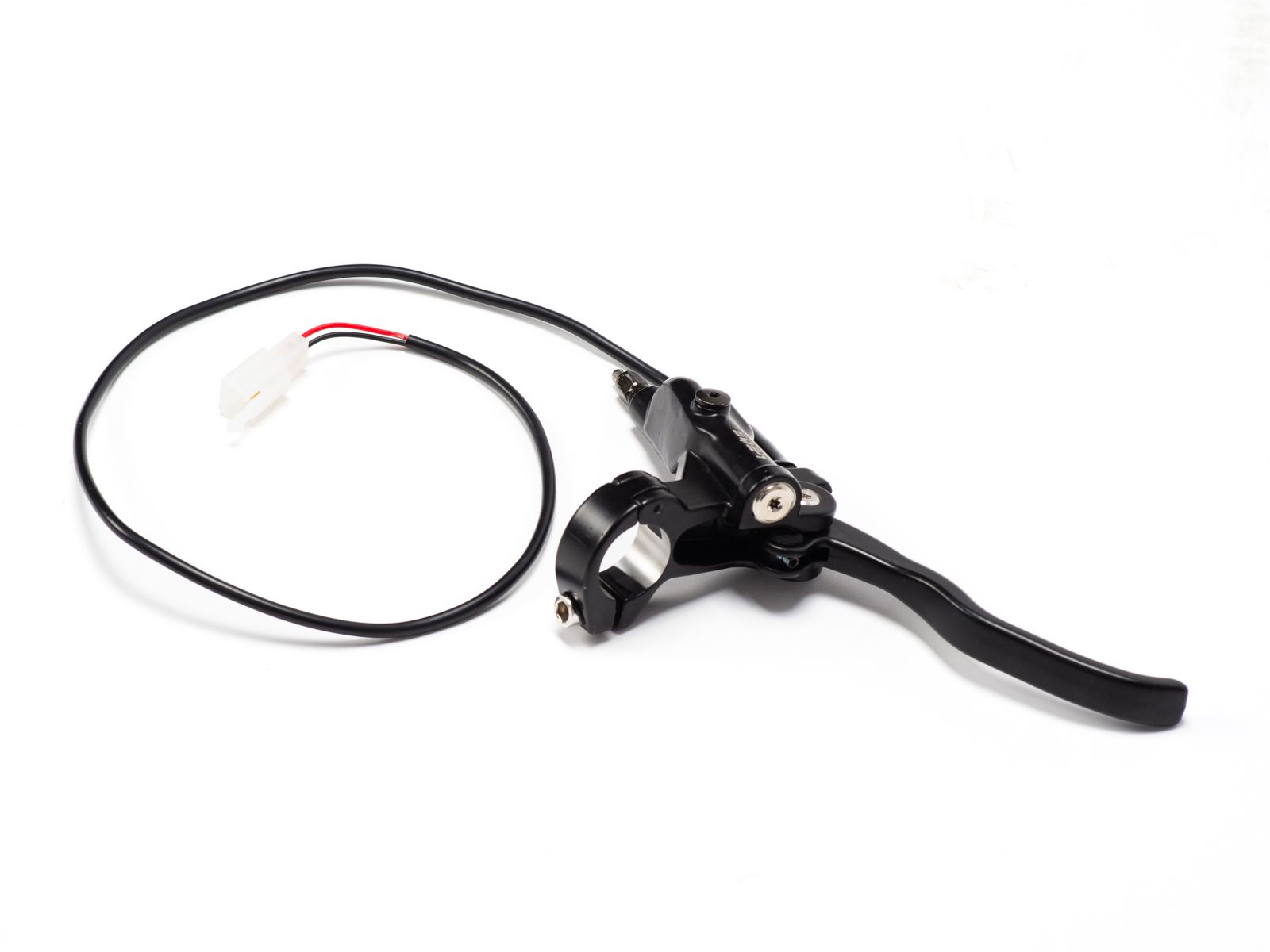

| Front brake | Hyraulic Disc (Right lever) e-moto brakes |
| Front disc | Wavey rotor 180mm, 6 bolt 48mm BCD |
| Rear brake | Hyraulic Disc (Left lever) e-moto brakes |
| Rear disc | Wavey rotor 160mm, 6 bolt 48mm BCD |
| Chain | Uprated performance gold 219H 108L |
| Gearing | Front 10T, Rear 55T |
| Motor | 72V EBX PMSM motor with temp feedback and encoder |
| Rated Power | 5.4KW |
| Peak power | 6.3KW (8.5hp) |
| Max RPM | 9,000 |
| Battery | New 72v 25 Ah battery with BMS 21700 Cells potted in steel case with Qs8 connector and air breaker switch |
| Controller | 80 Amp fardriver controller |
| Throttle | SURRON style full twist |
| Display | TFT odometer display with 3 speed modes and fault code analysis software |
| Connectors | Automotive connectors with sealed wiring harness |
| Charger | AC 100-240V, Output: 84V, 6A |
| Charge time | 4-5 hours |
| Light | LED headlight and switch |
| External adjustability | 3 riding modes |
| Range | 28-31 miles (45-50Km) |
| Top speed | 56mph (88Km/h) |
| Waterproof | IP54 |
| Other | USB A + C charging port |
| Wheelbase | 910mm |
| Ground clearance | 120mm |
| Seat height | 610mm |
| Bar height | 825mm |
| Max load | 100kg |
| eBike Weight | 49kg (108lbs) |
| Warranty | EBX 1 year/1000 miles (whichever comes first) powertrain warranty. 6 month parts warranty. See T&C's for more information |
Manufacturers Warranty: https://stompmoto.com/warranty/
User Manual: https://cdn.shopify.com/s/files/1/0877/9435/2404/files/Ebox_Dragster_Product_User_Manual.pdf?v=1774373450
Assembly & Build Options
The “Ready to Ride” option includes full professional assembly by our certified technicians. Each eBike is carefully built, safety-checked, tuned, and test-ridden to help ensure optimal performance and reliability before pickup.
Your eBike will be prepared for immediate riding from our retail location—no setup required. In the event of a manufacturer-covered warranty issue, our service team can coordinate with the manufacturer on your behalf, including parts processing and warranty facilitation.
Why Choose This Model?
What helps the Stomp Ebox Dragster RS - Orange - Ready to Ride stand apart is the way it combines compact proportions with practical electric-bike capability. With its responsive motor, speeds up to controlled, compact setup, its battery system, and 28-31 miles (45-50Km), it presents a useful balance of approachability and everyday function.
Customers shopping with Escondido eBike Super Shop may appreciate how naturally it fits into short trips, errands, and everyday transportation.
Explore More
Explore more commuter-friendly, compact, and city-ready eBikes at Escondido eBike Super Shop, where everyday practicality, approachable design, and useful electric mobility remain central to the lineup.
Escondido eBike Super Shop supports local riders in Escondido and San Diego while also giving customers nationwide access through shipping available across the USA.
