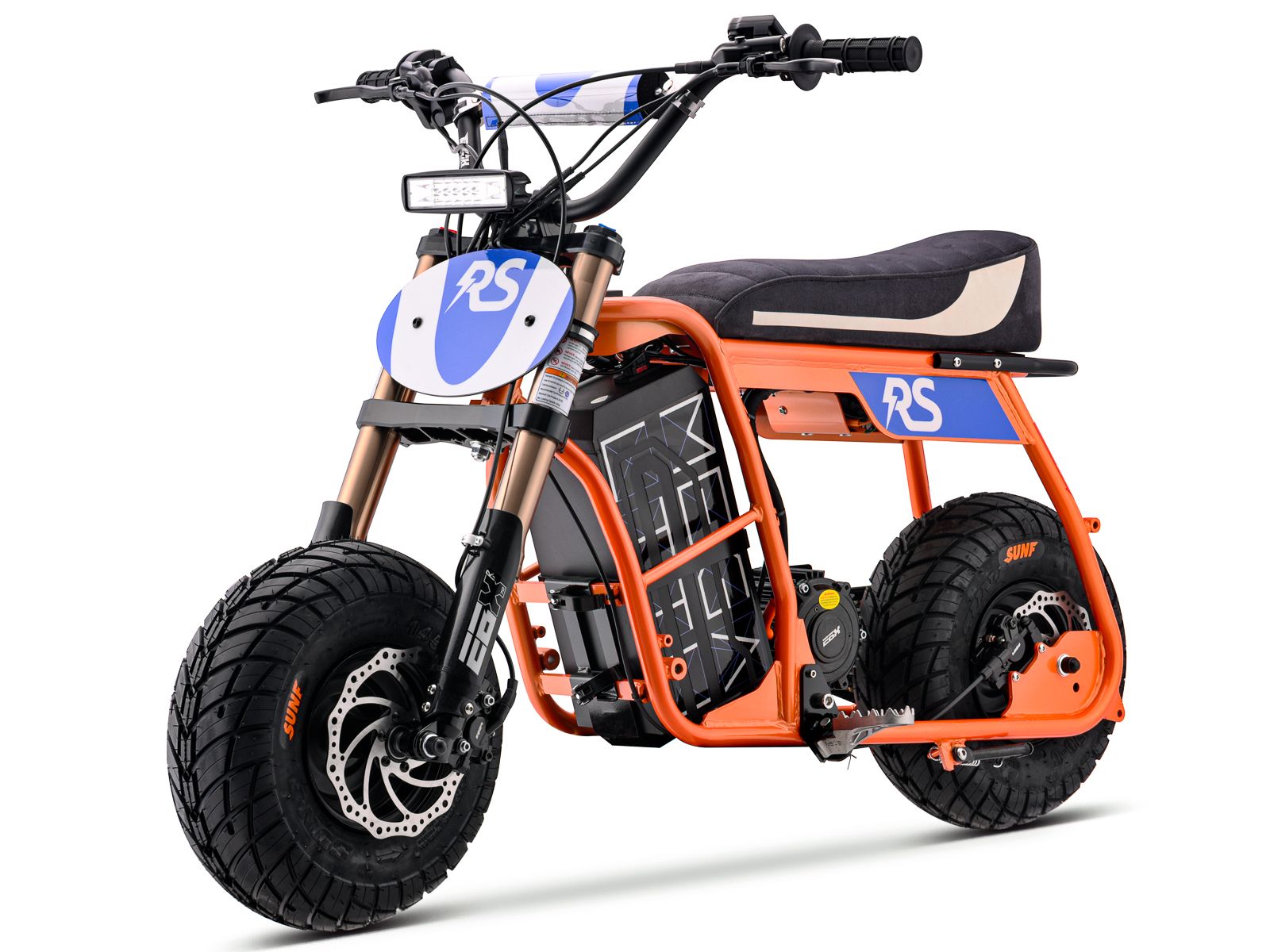

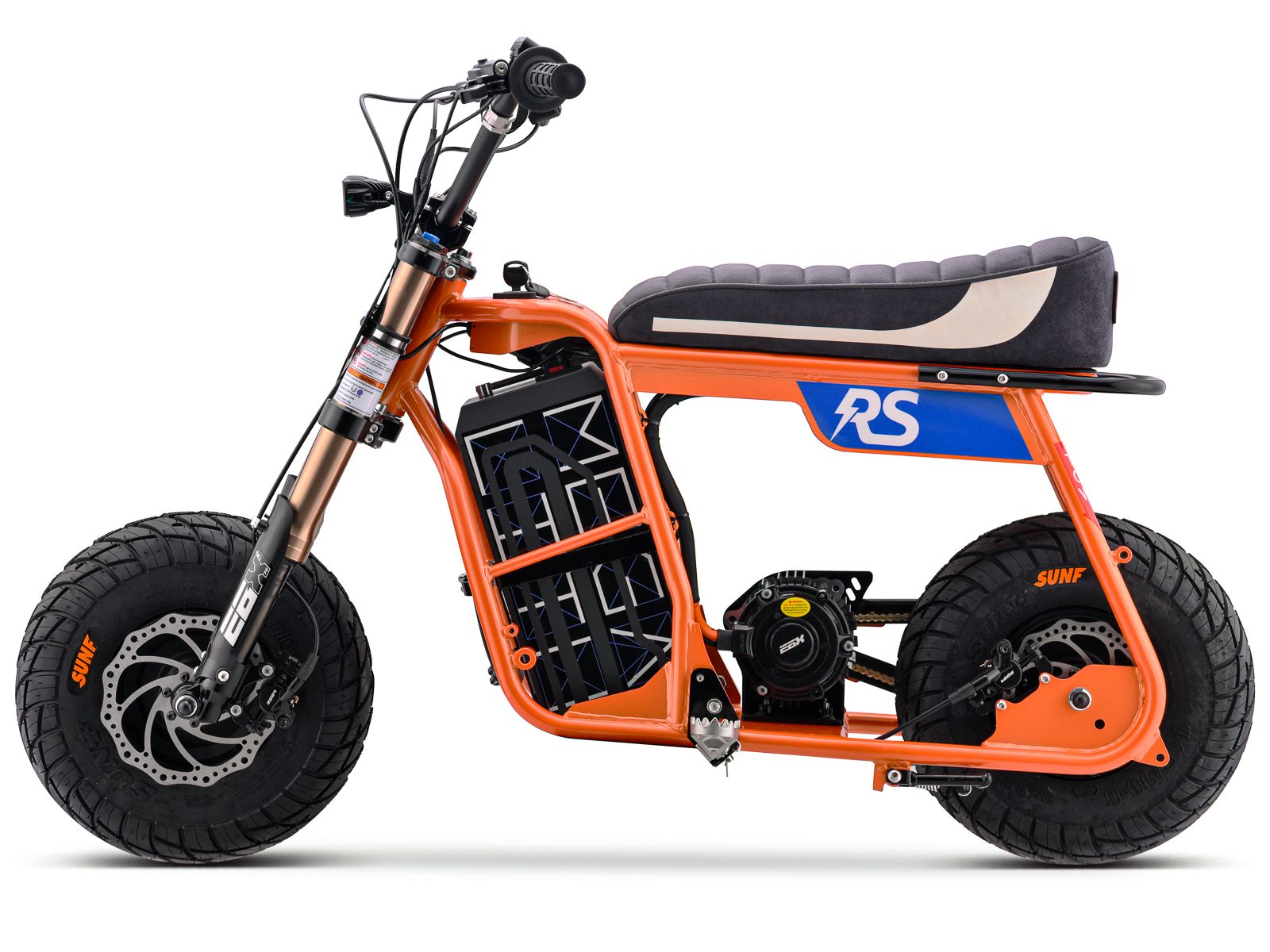

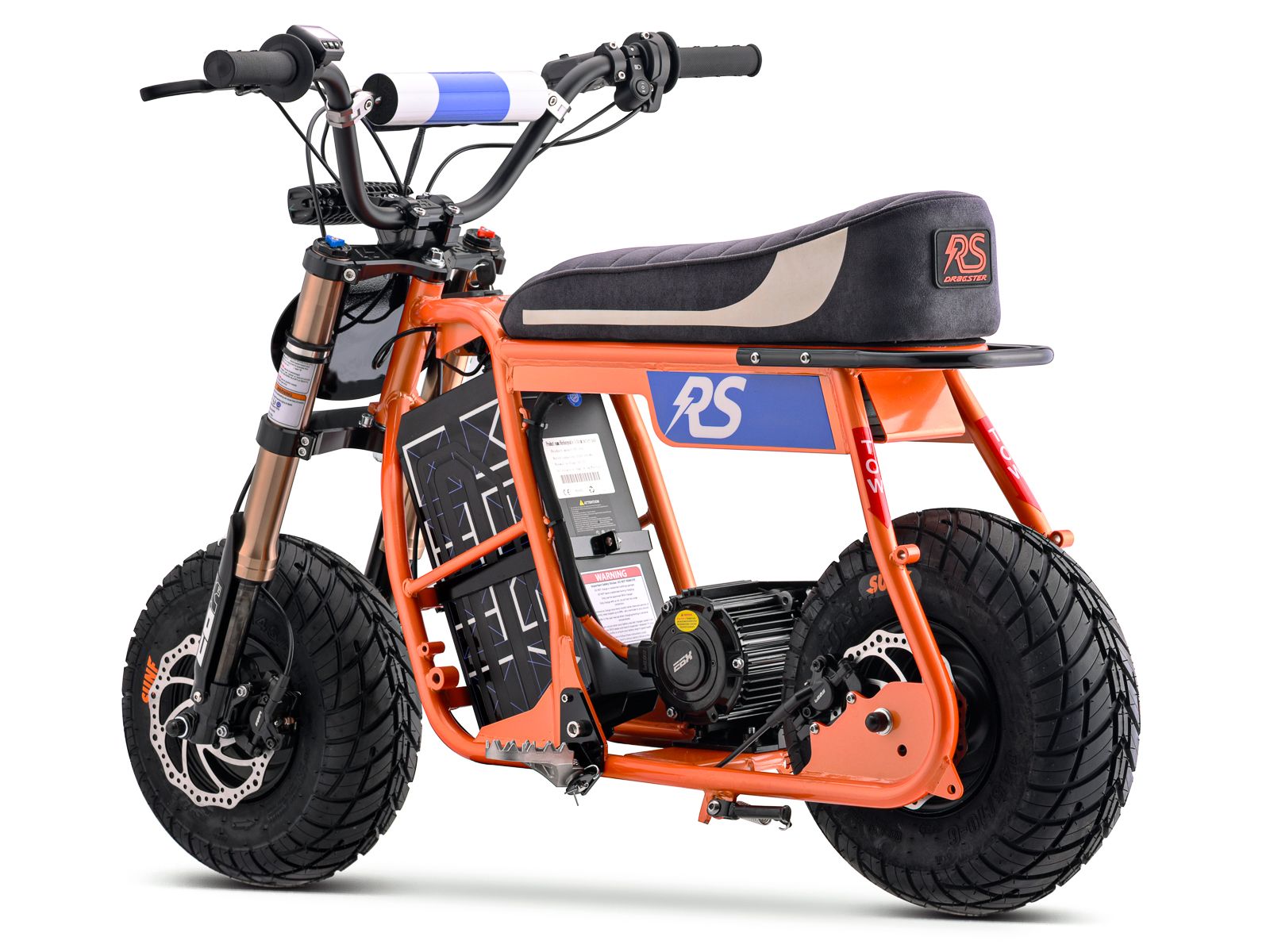

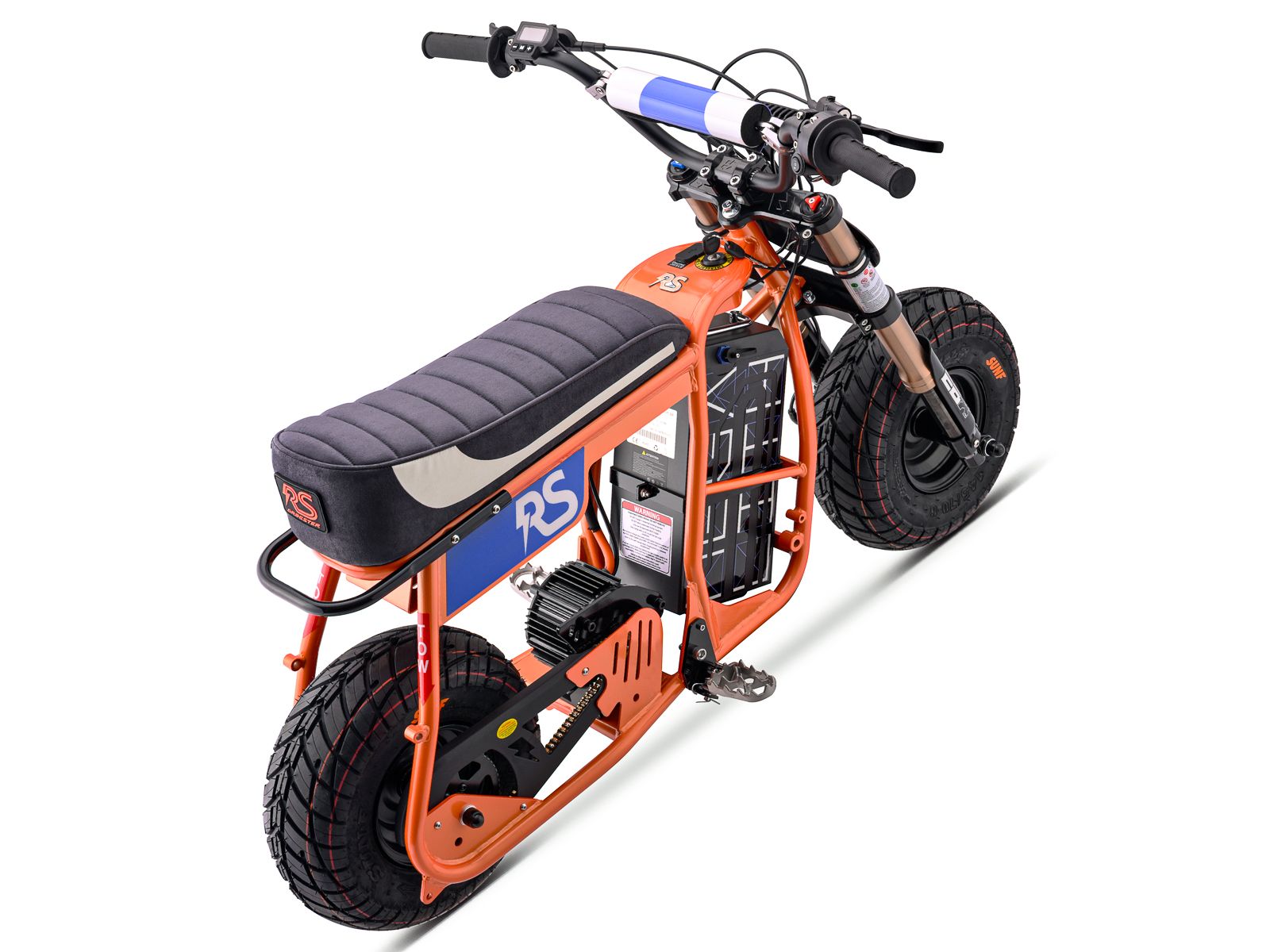

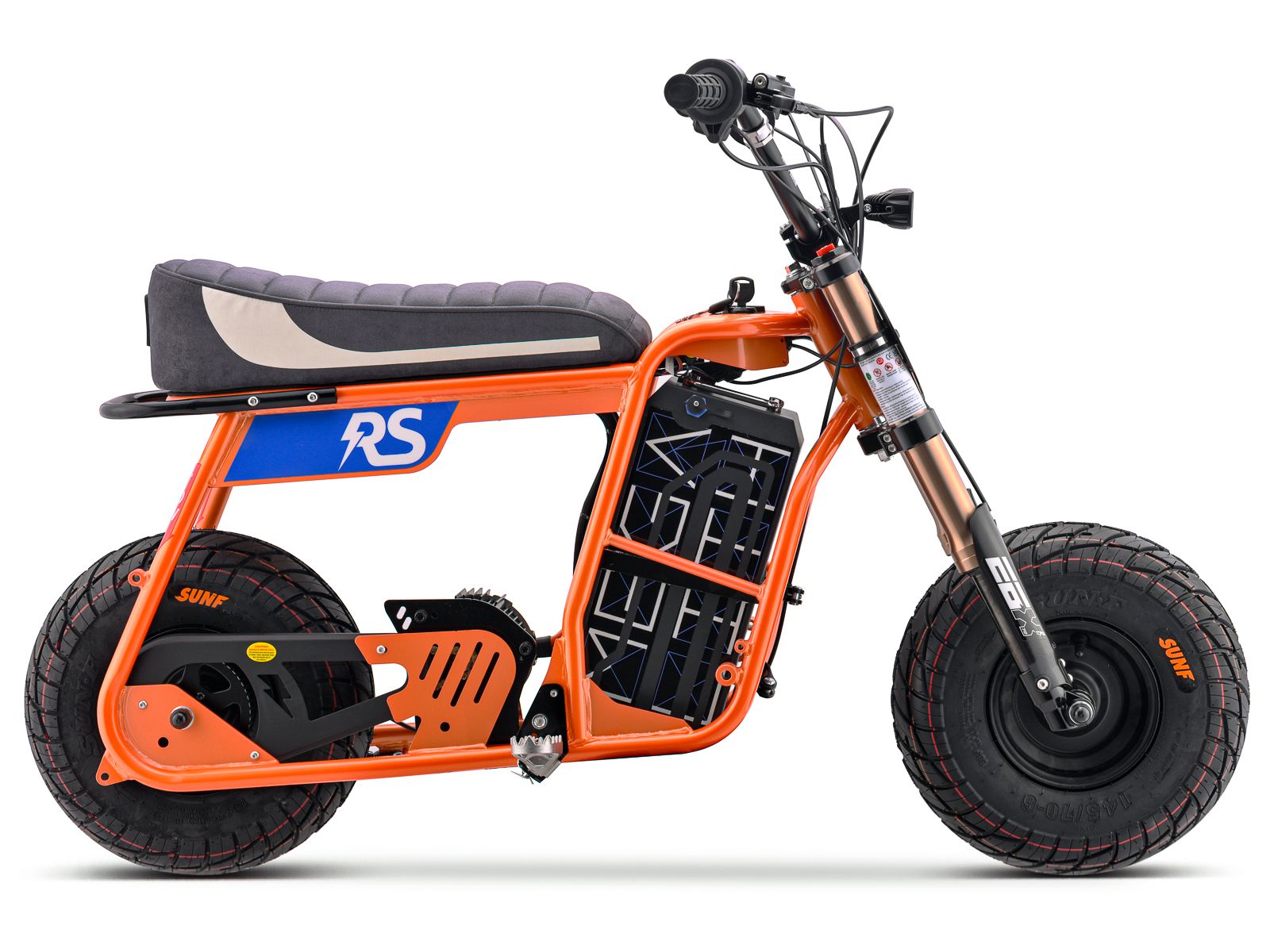

eMOTO Stomp Ebox Dragster RS - Orange - In a Box
Stomp Ebox Dragster RS - Orange - In a Box Electric Bike
Stomp Ebox authorized dealer in San Diego & EscondidoEscondido eBike Super Shop serves the Escondido, San Diego, and greater Southern California community with local pickup support as well as shipping service.
The Stomp Ebox Dragster RS - Orange - In a Box is a compact electric bike built for riders who want an easy, stylish way to handle short trips, neighborhood cruising, and everyday errands. Powered by a responsive motor with responsive power delivery and electric assist, it delivers approachable performance up to city-friendly speeds, while a practical battery system and 28-31 miles (45-50Km) help support regular day-to-day riding. Its compact proportions help keep the ride manageable and approachable. compact wheels and city-friendly proportions help the bike stay practical for everyday use.
Note: Wheelie bar not included with bike.
Key Features
- 72V EBX PMSM motor (temp feedback + encoder): 5.4KW rated power, 6.3KW (8.5hp) peak power, up to 9,000 RPM.
- 80 Amp Fardriver controller: Tuned for strong, responsive power delivery.
- Top speed up to 56mph (88Km/h): Built for high-speed performance.
- New 72v 25 Ah battery: BMS 21700 cells potted in a steel case, Qs8 connector, and air breaker switch.
- Smart TFT odometer display: 3 speed modes and fault code analysis software.

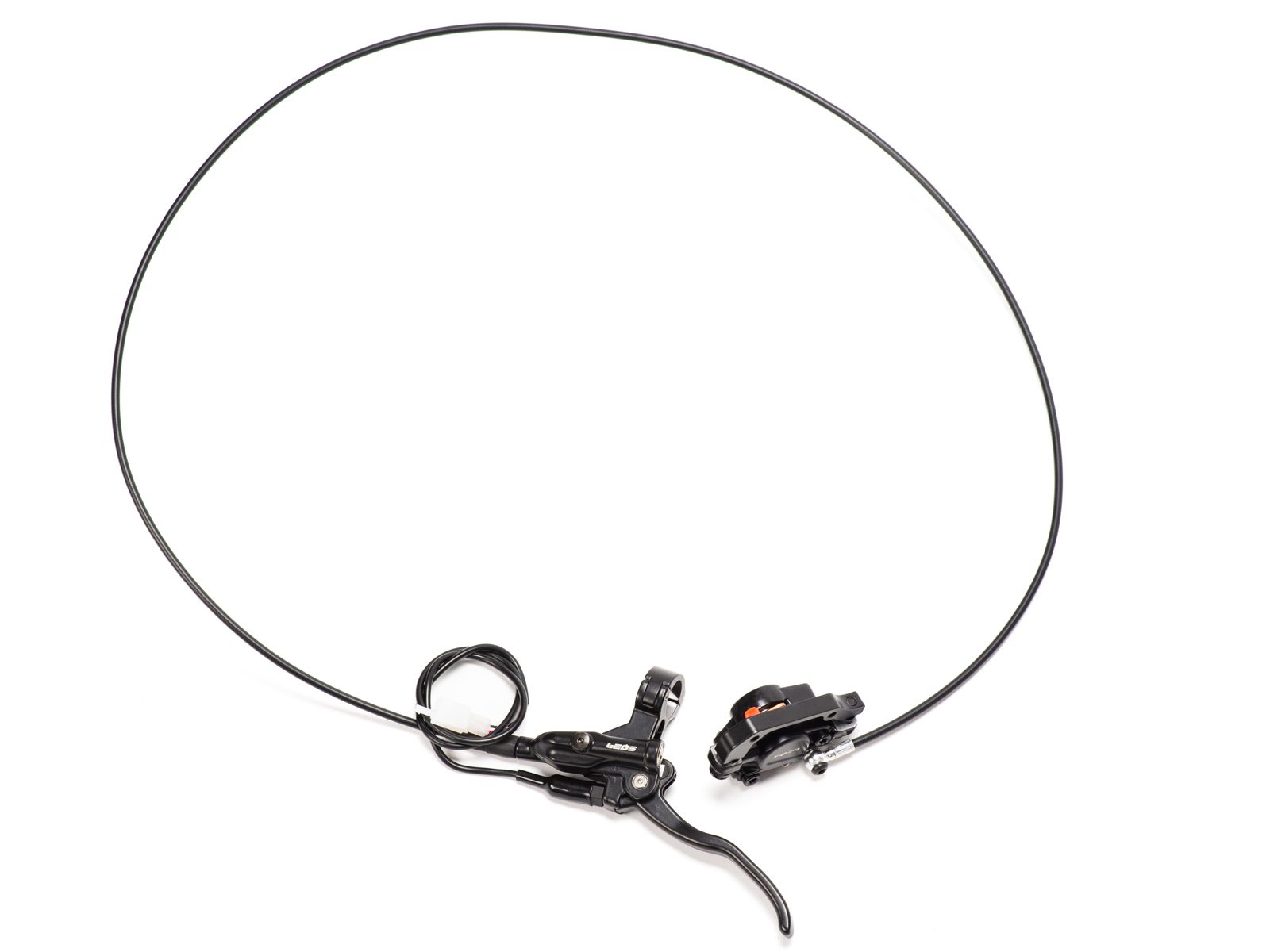

- Hydraulic disc braking: E-moto brakes with wavey rotors (180mm front / 160mm rear).
- Inverted front suspension: 100mm travel with bronze anodised fork legs and black hardened stanchions.
- Performance chassis and hardware: Full duplex frame, billet 6061 T6 CNC machined triple clamps, removable motor plate, integrated chain tensioner, loop tail design, and quick release battery system.
- Street-ready details: Integrated LED headlight and switch, USB A + C charging port, sealed wiring harness with automotive connectors.
Specifications
| Feature | Details |
|---|---|
| Frame type | Full duplex |
| Frame construction | High strength steel, removable motor plate, integrated chain tensioner, loop tail design, quick release battery system, 2-point foot peg position mounts, frame mounted stunt peg compatible. |
| Fork | 100mm Travel Inverted forks with bronze anodised fork legsand black hardened stanchions |
| Fork Clamps | Billet 6061 T6 CNC machined triple clamps |
| Bar Risers | 6061 T6 CNC machined 35mm rise Ø22.2 |
| Handlebar | 6061 T6 29.5" x 7", with 3 piece crossbar and bar pad |
| Seat | Luxurious suede RS wedge seat |
| Front wheel size | 6" |
| Rear wheel size | 6" |
| Front tyre | 145/70-6 SUNF fast SM tyres |
| Rear tyre | 145/70-6 SUNF fast SM tyres |

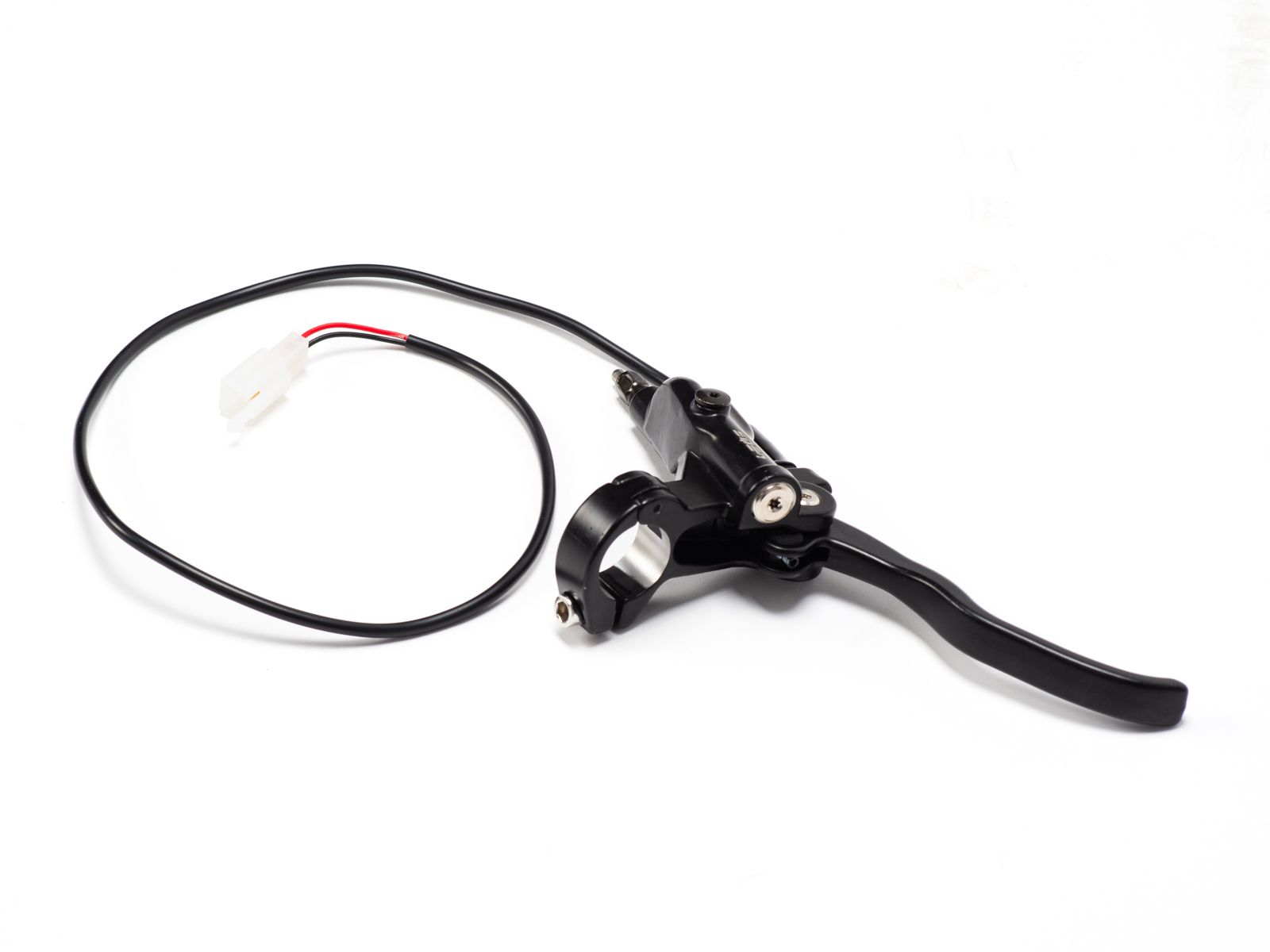

| Front brake | Hyraulic Disc (Right lever) e-moto brakes |
| Rear brake | Hyraulic Disc (Left lever) e-moto brakes |
| Front disc | Wavey rotor 180mm, 6 bolt 48mm BCD |
| Rear disc | Wavey rotor 160mm, 6 bolt 48mm BCD |
| Chain | Uprated performance gold 219H 108L |
| Gearing | Front 10T, Rear 55T |
| Motor | 72V EBX PMSM motor with temp feedback and encoder |
| Rated Power | 5.4KW |
| Peak power | 6.3KW (8.5hp) |
| Max RPM | 9,000 |
| Controller | 80 Amp fardriver controller |
| Battery | New 72v 25 Ah battery with BMS 21700 Cells potted in steel case with Qs8 connector and air breaker switch |
| Charger | AC 100-240V, Output: 84V, 6A |
| Throttle | SURRON style full twist |
| Display | TFT odometer display with 3 speed modes and fault code analysis software |
| External adjustability | 3 riding modes |
| Light | LED headlight and switch |
| Connectors | Automotive connectors with sealed wiring harness |
| USB | USB A + C charging port |
| Charge time | 4-5 hours |
| Range | 28-31 miles (45-50Km) |
| Top speed | 56mph (88Km/h) |
| Waterproof | IP54 |
| Wheelbase | 910mm |
| Ground clearance | 120mm |
| Seat height | 610mm |
| Bar height | 825mm |
| Bike Weight | 49kg (108lbs) |
| Max load | 100kg |
Assembly & Build Options
The “In a Box” option is delivered in the manufacturer’s original packaging and arrives unassembled. Professional assembly will be required prior to riding, including proper installation, torque verification, and a full safety inspection of all components.
This option does not include assembly services, safety inspection, tuning, or ongoing service support from our retail location. All warranty claims, technical support, and product-related concerns must be handled directly with the manufacturer through the official support channels.
Warranty & Manual
Warranty: EBX 1 year/1000 miles (whichever comes first) powertrain warranty. 6 month parts warranty. See T&C's for more information
Why Choose This Model?
What helps the Stomp Ebox Dragster RS - Orange - In a Box stand apart is the way it combines compact proportions with practical electric-bike capability. With its responsive motor, speeds up to controlled, compact setup, its battery system, and 28-31 miles (45-50Km), it presents a useful balance of approachability and everyday function.
Customers shopping with Escondido eBike Super Shop may appreciate how naturally it fits into short trips, errands, and everyday transportation.
Explore More
Explore more commuter-friendly, compact, and city-ready eBikes at Escondido eBike Super Shop, where everyday practicality, approachable design, and useful electric mobility remain central to the lineup.
Escondido eBike Super Shop supports local riders in Escondido and San Diego while also giving customers nationwide access through shipping available across the USA.
