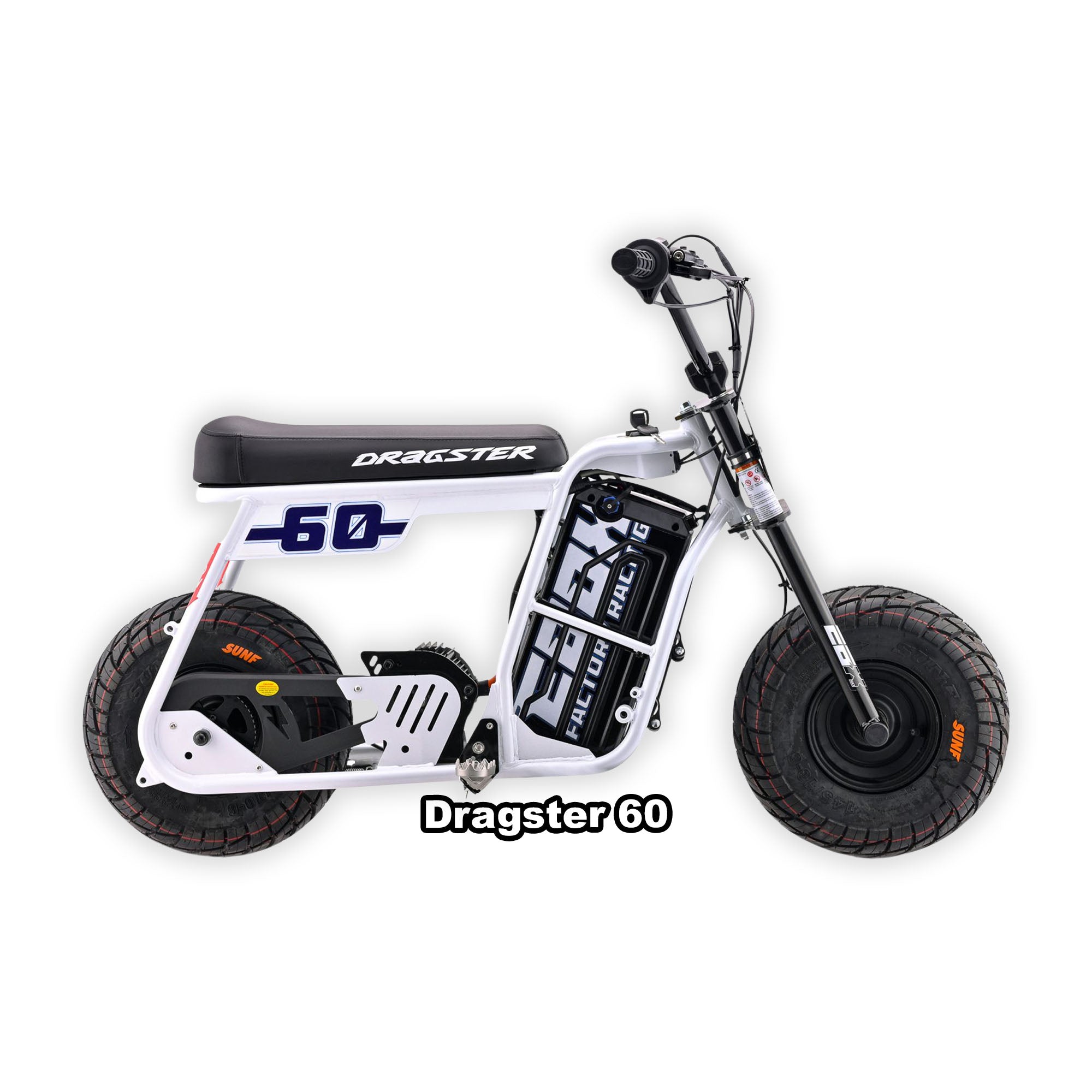

eMOTO Stomp Ebox Dragster 60 - White - In a Box
Stomp Ebox Dragster 60 - White - In a Box Electric Bike
Stomp Ebox authorized dealer in San Diego & EscondidoEscondido eBike Super Shop serves the Escondido, San Diego, and greater Southern California community with local pickup support as well as shipping service.
The Stomp Ebox Dragster 60 - White - In a Box is a compact electric bike built for riders who want an easy, stylish way to handle short trips, neighborhood cruising, and everyday errands. Powered by a responsive motor with responsive power delivery and electric assist, it delivers approachable performance up to city-friendly speeds, while a practical battery system and 21-25 miles (35-40Km) help support regular day-to-day riding. Its compact proportions help keep the ride manageable and approachable. compact wheels and city-friendly proportions help the bike stay practical for everyday use.
Note: Wheelie bar not included with eMOTO.
Key Features

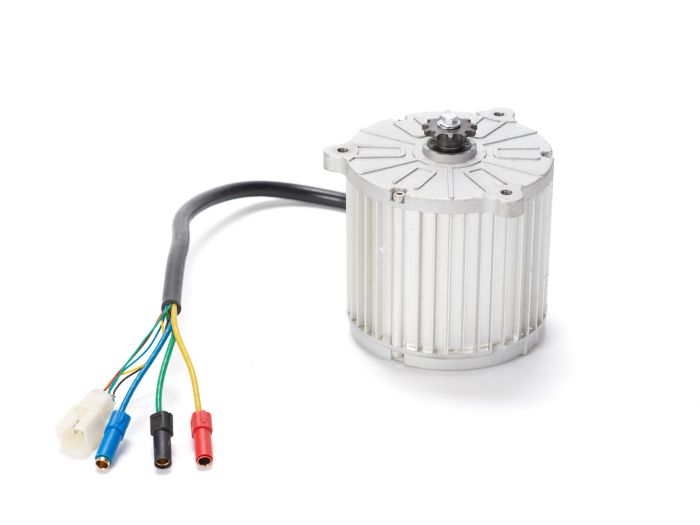

- 60V EBX PMSM motor with temp feedback and encoder: Rated Power 3.3KW, Peak power 3.7KW (5hp), Max RPM 7,500.
- 80 Amp Fardriver controller: Tuned for strong acceleration and consistent performance.
- 60v 18.2Ah battery: 18,600 cells with QS8 connector and quick release battery system.
- TFT odometer display: 3 speed modes plus fault code analysis software.
- Hydraulic disc braking: Front Hyraulic Disc (Right lever) e-moto brakes and Rear Hyraulic Disc (Left lever) e-moto brakes with Wavey rotor 160mm (front/rear).
- Compact 6" wheel setup: Front wheel size 6" and Rear wheel size 6" with 145/70-6 SUNF fast SM tyres.
- Durable chassis details: High strength steel frame, removable motor plate, integrated chain tensioner, loop tail design, 2-point foot peg position mounts, and frame mounted stunt peg compatible.
- IP54 rating: Waterproof IP54.
- USB charging: USB A + C charging port.
Specifications
| Feature | Details |
|---|---|
| Frame type | Full duplex |
| Fork | Rigid High Tensile |
| Bar Risers | Cast alloy 36mm rise Ø22.2 |
| Front wheel size | 6" |
| Rear wheel size | 6" |
| Front brake | Hyraulic Disc (Right lever) e-moto brakes |
| Front disc | Wavey rotor 160mm, 6 bolt 48mm BCD |
| Rear brake | Hyraulic Disc (Left lever) e-moto brakes |
| Rear disc | Wavey rotor 160mm, 6 bolt 48mm BCD |
| Front tyre | 145/70-6 SUNF fast SM tyres |
| Rear tyre | 145/70-6 SUNF fast SM tyres |
| Chain | 219H 108L |
| Gearing | Front 10T, Rear 55T |
| Max load | 100kg |
| Handlebar | High Tensile 2 Piece 29.5" x 7" |
| Seat | Dragster seat |
| Motor | 60V EBX PMSM motor with temp feedback and encoder |
| Rated Power | 3.3KW |
| Peak power | 3.7KW (5hp) |
| Max RPM | 7,500 |
| Battery | 60v 18.2Ah battery 18,600 cells with QS8 connector |
| Controller | 80 Amp fardriver controller |
| Throttle | SURRON style full twist |
| Display | TFT odometer display with 3 speed modes and fault code analysis software |
| Connectors | Automotive connectors with sealed wiring harness |
| Charger | AC 100-240V, Output: 67.2V, 3A |
| Charge time | 5-6 hours |
| Range | 21-25 miles (35-40Km) |
| Top speed | 45mph (72Km/h) |
| External adjustability | 3 riding modes |
| Frame construction | High strength steel, removable motor plate, integrated chain tensioner, loop tail design, quick release battery system, 2-point foot peg position mounts, frame mounted stunt peg compatible. |
| Waterproof | IP54 |
| Other | USB A + C charging port |
| Wheelbase | 882mm |
| Ground clearance | 120mm |
| Seat height | 585mm |
| Bar height | 810mm |
| Bike Weight | 42.5kg (94lbs) |
| Warranty | EBX 1 year/1000 miles (whichever comes first) powertrain warranty. 6 month parts warranty. See T&C's for more information |
Manufacturers Warranty: https://stompmoto.com/warranty/
User Manual: https://cdn.shopify.com/s/files/1/0877/9435/2404/files/Ebox_Dragster_Product_User_Manual.pdf?v=1774373450
Assembly & Build Options
The “In a Box” option is delivered in the manufacturer’s original packaging and arrives unassembled. Professional assembly will be required prior to riding, including proper installation, torque verification, and safety inspection of all components.
This option does not include assembly services, safety inspection, tuning, or ongoing service support from our retail location. All warranty claims, technical support, and product-related concerns must be handled directly with the manufacturer through the manufacturer’s official support channels.
Why Choose This Model?
What helps the Stomp Ebox Dragster 60 - White - In a Box stand apart is the way it combines compact proportions with practical electric-bike capability. With its responsive motor, speeds up to controlled, compact setup, its battery system, and 21-25 miles (35-40Km), it presents a useful balance of approachability and everyday function.
Customers shopping with Escondido eBike Super Shop may appreciate how naturally it fits into short trips, errands, and everyday transportation.
Explore More
Explore more commuter-friendly, compact, and city-ready eBikes at Escondido eBike Super Shop, where everyday practicality, approachable design, and useful electric mobility remain central to the lineup.
Escondido eBike Super Shop supports local riders in Escondido and San Diego while also giving customers nationwide access through shipping available across the USA.
