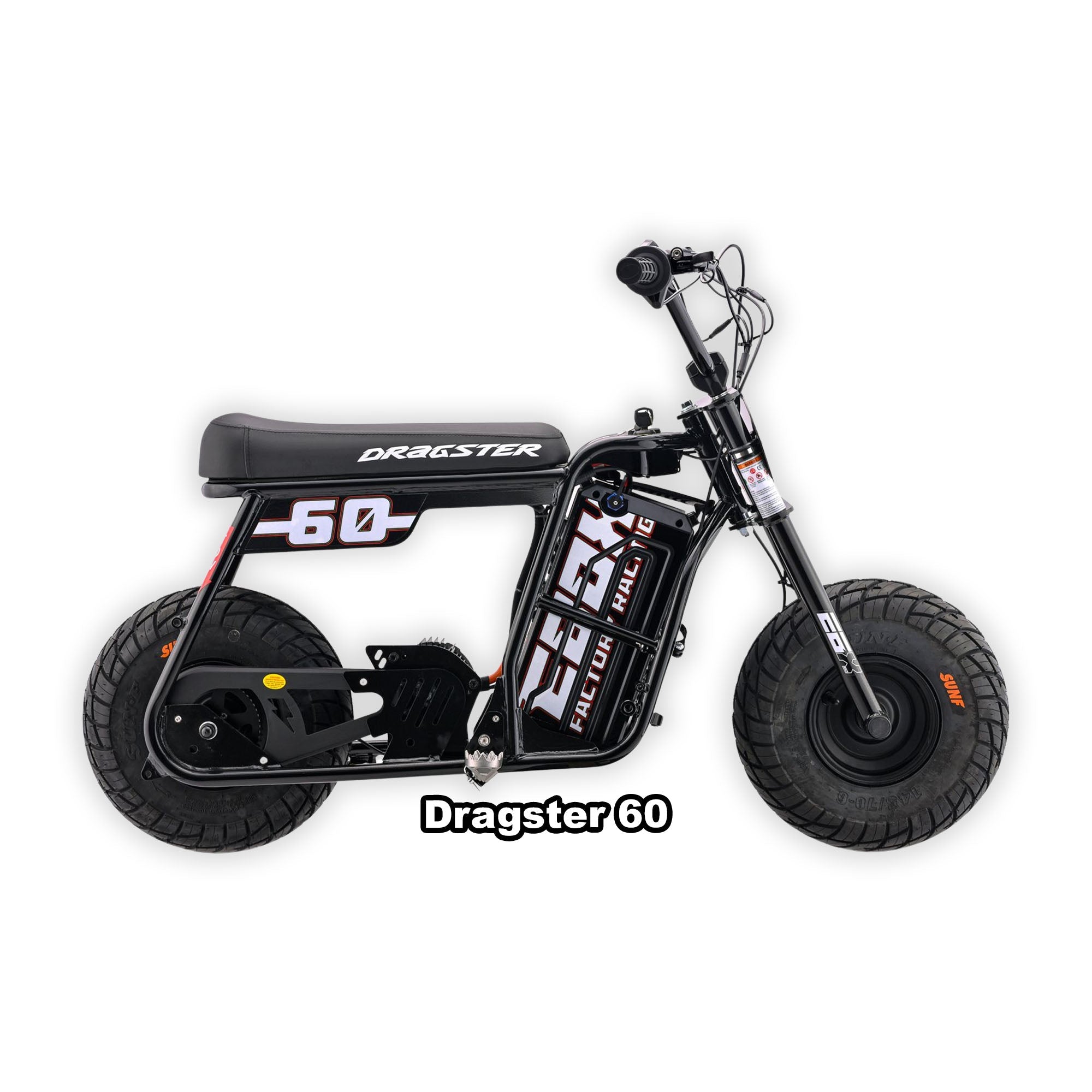

eMOTO Stomp Ebox Dragster 60 - Black - In a Box
Stomp Ebox Dragster 60 Electric Bike
Stomp Ebox authorized dealer in San Diego & EscondidoEscondido eBike Super Shop serves the Escondido, San Diego, and greater Southern California community with local pickup support as well as shipping service.
The Stomp Ebox Dragster 60 - Black - In a Box is a compact electric bike built for riders who want an easy, stylish way to handle short trips, neighborhood cruising, and everyday errands. Powered by a responsive motor with responsive power delivery and electric assist, it delivers approachable performance up to city-friendly speeds, while a practical battery system and 21-25 miles (35-40Km) help support regular day-to-day riding. Its compact proportions help keep the ride manageable and approachable. compact wheels and city-friendly proportions help the bike stay practical for everyday use.
Key Features

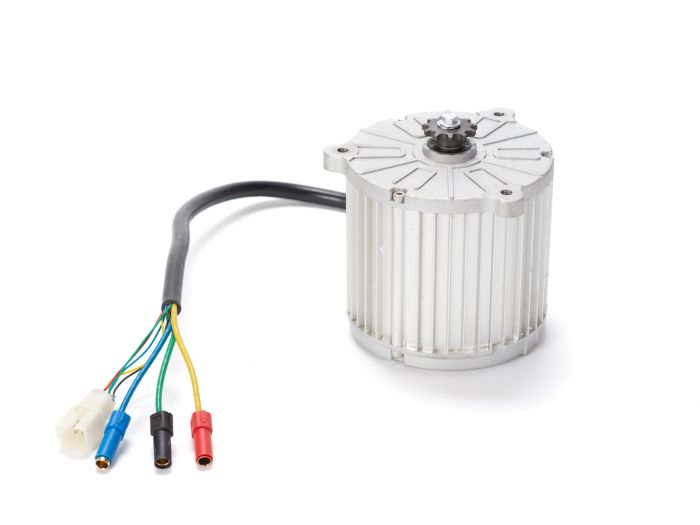

- 60V EBX PMSM motor with encoder: Temperature protected motor with temp feedback and encoder, rated at 3.3KW with 3.7KW (5hp) peak power and up to 7,500 max RPM.
- 80 Amp fardriver controller: High-output control paired with sealed wiring harness and automotive connectors.
- 60V 18.2Ah battery system: 60v 18.2Ah battery (18,600 cells) with QS8 connector and a quick release battery system.
- 3-mode TFT color display: TFT odometer display with 3 speed modes and fault code analysis software.
- Hydraulic disc braking: Hyraulic Disc (Right lever) e-moto brakes in front and Hyraulic Disc (Left lever) e-moto brakes in rear with Wavey rotor 160mm, 6 bolt 48mm BCD (front/rear).
- Compact 6" wheel setup: 6" front and rear wheels with 145/70-6 SUNF fast SM tyres.
- Full duplex high-strength steel frame: High strength steel frame construction with removable motor plate, integrated chain tensioner, loop tail design, 2-point foot peg position mounts, and frame mounted stunt peg compatible.
- Onboard device charging: USB A + C charging port.
- Wheelie bar availability: Wheelie bar not included with bike (available separately).
Specifications
| Feature | Details |
|---|---|
| Frame type | Full duplex |
| Fork | Rigid High Tensile |
| Bar Risers | Cast alloy 36mm rise Ø22.2 |
| Handlebar | High Tensile 2 Piece 29.5" x 7" |
| Seat | Dragster seat |
| Front wheel size | 6" |
| Rear wheel size | 6" |
| Front tyre | 145/70-6 SUNF fast SM tyres |
| Rear tyre | 145/70-6 SUNF fast SM tyres |
| Front brake | Hyraulic Disc (Right lever) e-moto brakes |
| Rear brake | Hyraulic Disc (Left lever) e-moto brakes |
| Front disc | Wavey rotor 160mm, 6 bolt 48mm BCD |
| Rear disc | Wavey rotor 160mm, 6 bolt 48mm BCD |
| Chain | 219H 108L |
| Gearing | Front 10T, Rear 55T |
| Motor | 60V EBX PMSM motor with temp feedback and encoder |
| Rated Power | 3.3KW |
| Peak power | 3.7KW (5hp) |
| Max RPM | 7,500 |
| Controller | 80 Amp fardriver controller |
| Throttle | SURRON style full twist |
| Display | TFT odometer display with 3 speed modes and fault code analysis software |
| Battery | 60v 18.2Ah battery 18,600 cells with QS8 connector |
| Charger | AC 100-240V, Output: 67.2V, 3A |
| Charge time | 5-6 hours |
| Range | 21-25 miles (35-40Km) |
| Top speed | 45mph (72Km/h) |
| External adjustability | 3 riding modes |
| Connectors | Automotive connectors with sealed wiring harness |
| Waterproof | IP54 |
| Other | USB A + C charging port |
| Frame construction | High strength steel, removable motor plate, integrated chain tensioner, loop tail design, quick release battery system, 2-point foot peg position mounts, frame mounted stunt peg compatible. |
| Wheelbase | 882mm |
| Ground clearance | 120mm |
| Seat height | 585mm |
| Bar height | 810mm |
| Bike Weight | 42.5kg (94lbs) |
| Max load | 100kg |
| Warranty | EBX 1 year/1000 miles (whichever comes first) powertrain warranty. 6 month parts warranty. See T&C's for more information |
User Manual: https://cdn.shopify.com/s/files/1/0877/9435/2404/files/Ebox_Dragster_Product_User_Manual.pdf?v=1774373450
Assembly & Build Options
The “In a Box” option is delivered in the manufacturer’s original packaging and arrives unassembled. Professional assembly is required prior to riding, including correct installation, torque checks, and a complete safety inspection.
This option does not include assembly services, safety inspection, tuning, or ongoing service support from our retail location. All warranty claims, technical support, and product-related concerns must be handled directly with the manufacturer through their official support channels.
Why Choose This Model?
What helps the Stomp Ebox Dragster 60 - Black - In a Box stand apart is the way it combines compact proportions with practical electric-bike capability. With its responsive motor, speeds up to controlled, compact setup, its battery system, and 21-25 miles (35-40Km), it presents a useful balance of approachability and everyday function.
Customers shopping with Escondido eBike Super Shop may appreciate how naturally it fits into short trips, errands, and everyday transportation.
Explore More
Explore more commuter-friendly, compact, and city-ready eBikes at Escondido eBike Super Shop, where everyday practicality, approachable design, and useful electric mobility remain central to the lineup.
Escondido eBike Super Shop supports local riders in Escondido and San Diego while also giving customers nationwide access through shipping available across the USA.
