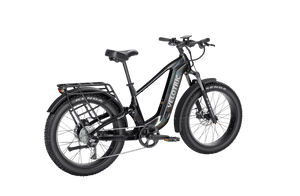

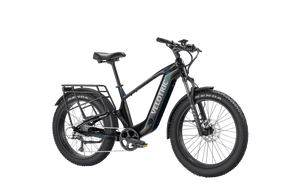

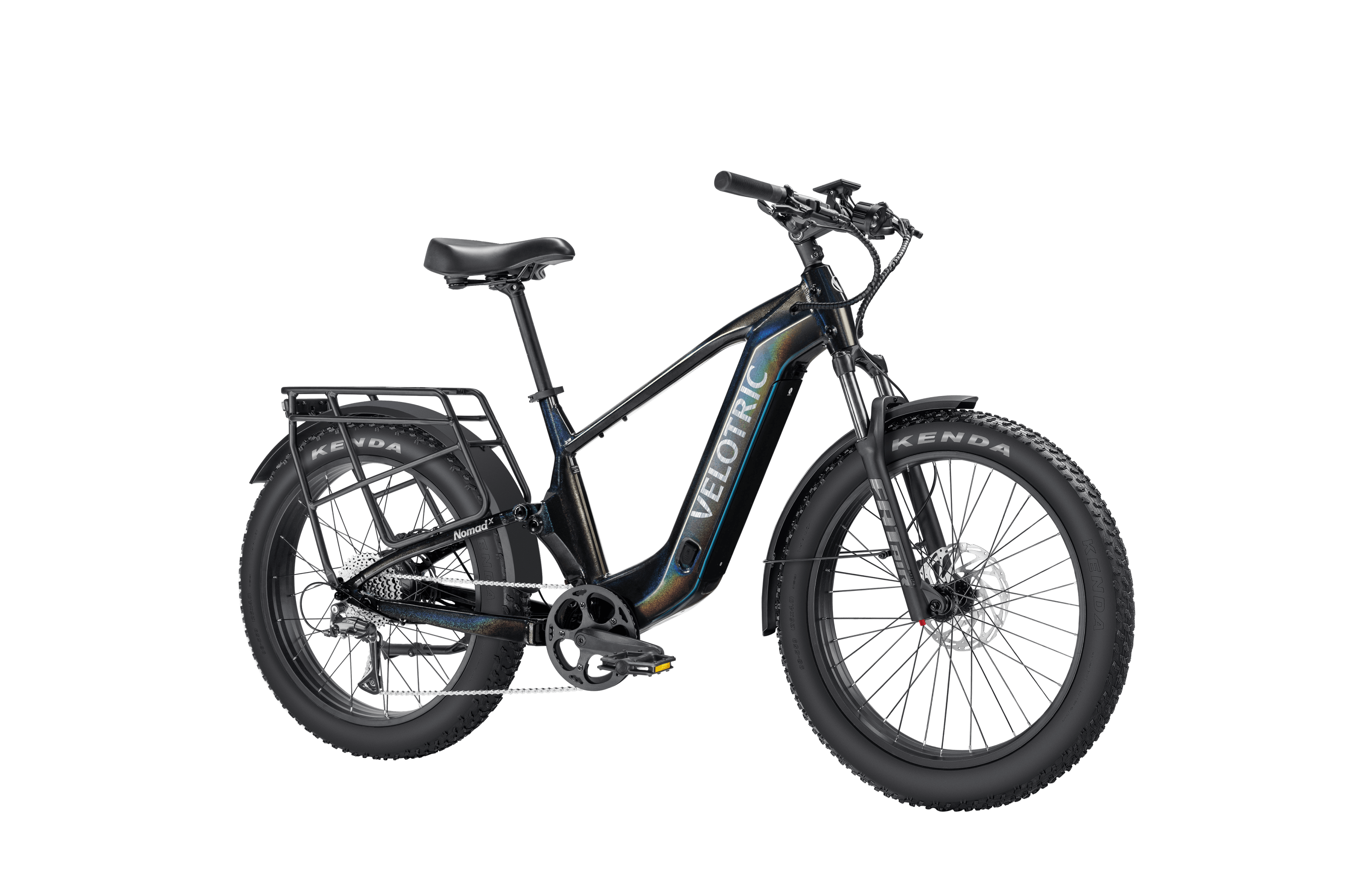

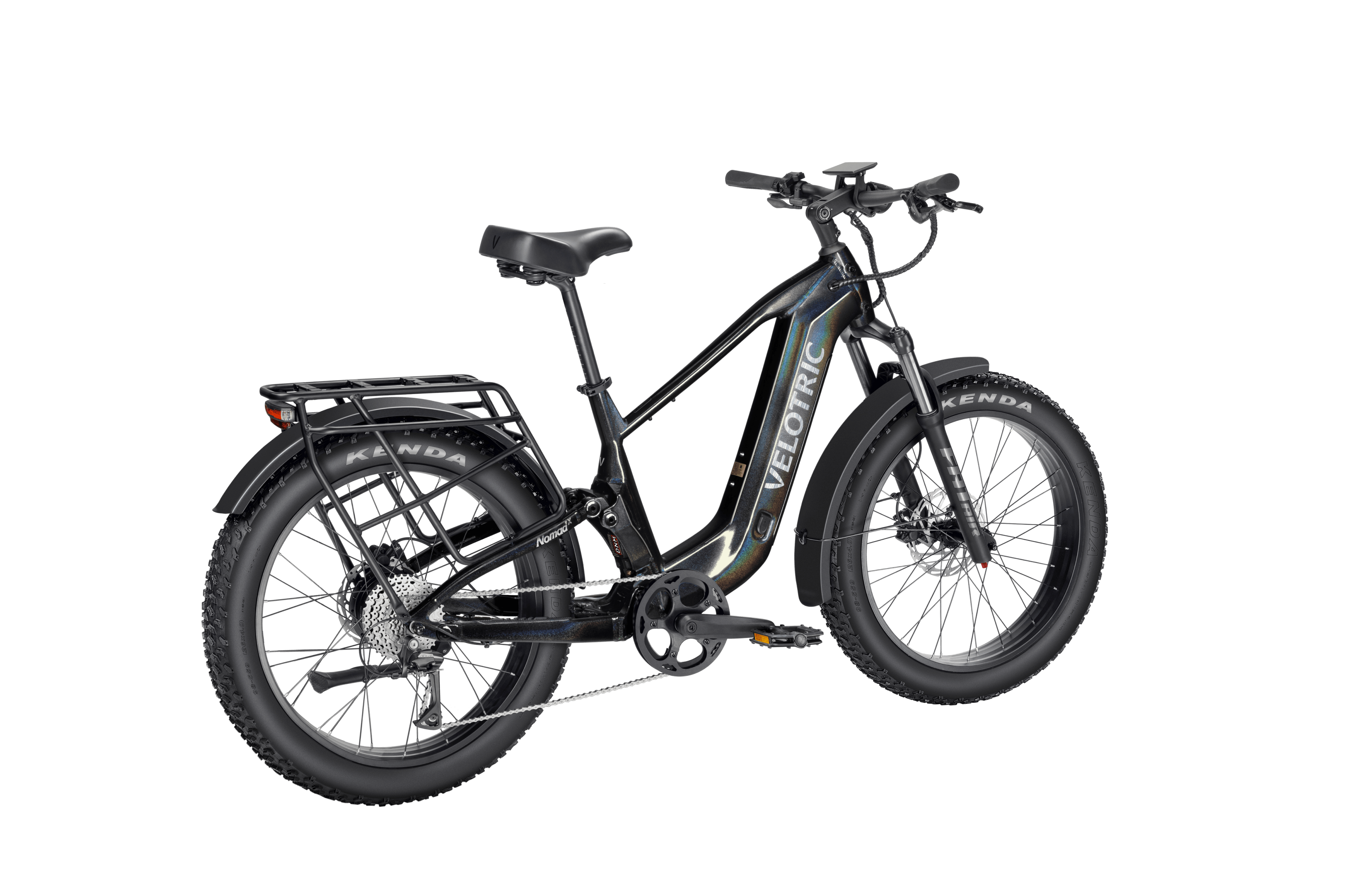

eBike Velotric Nomad 2X - Step Thru - Obsidian - In a Box
Velotric Nomad 2X - Step Thru - Obsidian - In a Box Electric Bike
Velotric authorized dealer in San Diego & EscondidoVelotric warranty & support for Ready to Ride eBikes
Escondido eBike Super Shop serves the Escondido, San Diego, and greater Southern California community with local pickup support as well as shipping service.

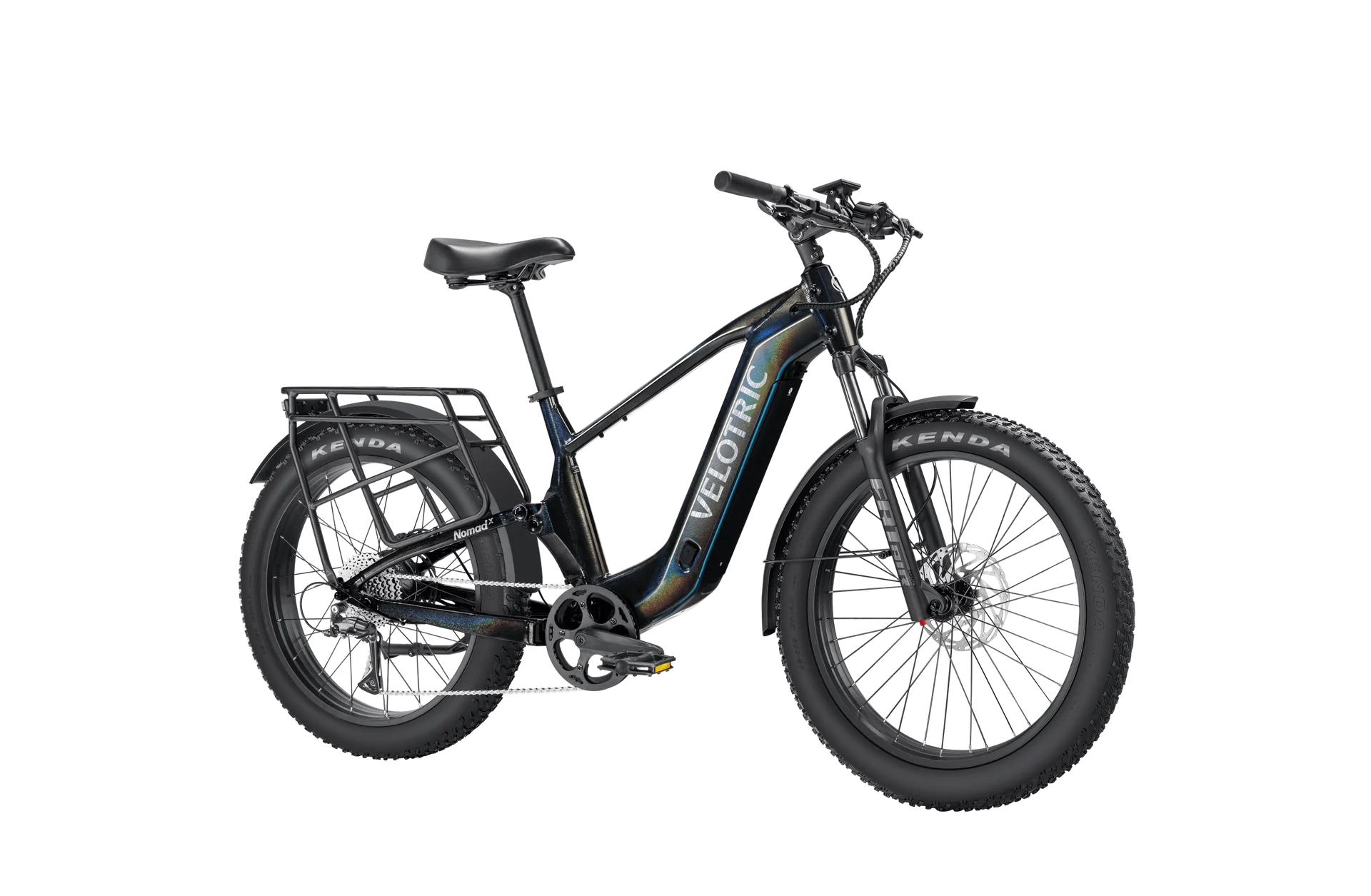

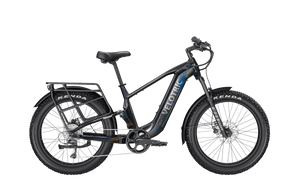

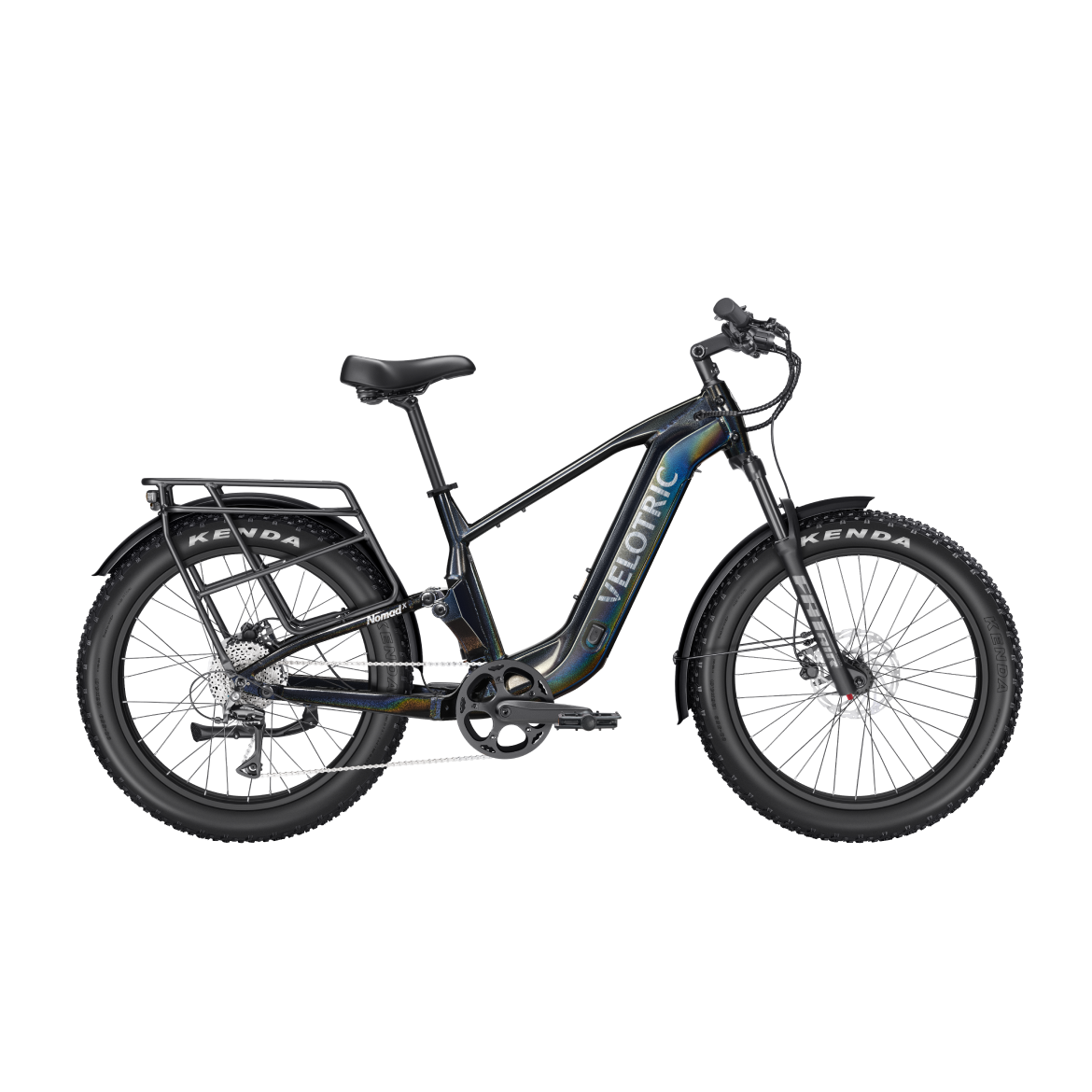

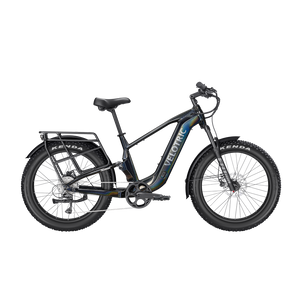

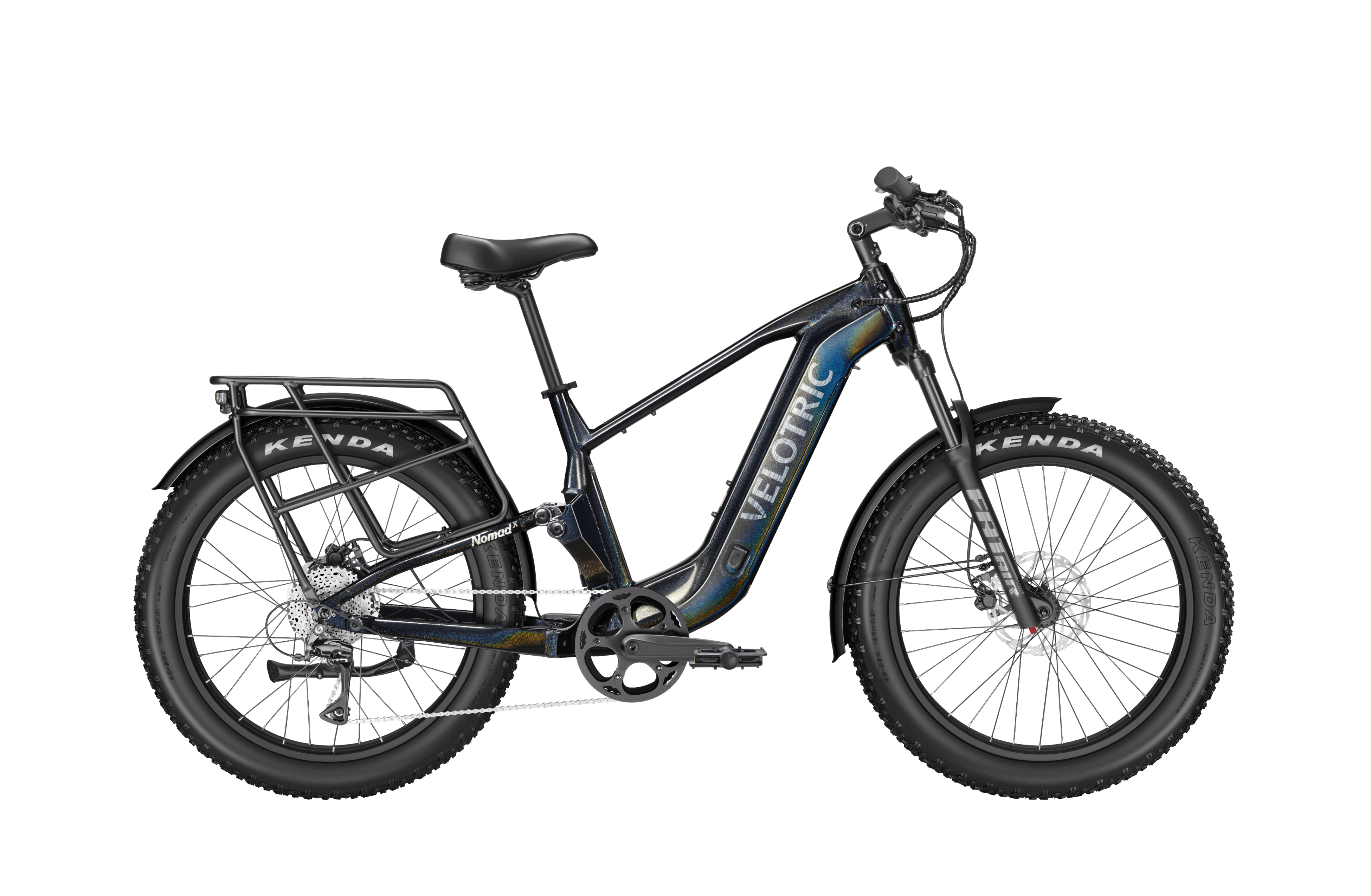

The Velotric Nomad 2X - Step Thru - Obsidian - In a Box is a compact electric bike built for riders who want an easy, stylish way to handle short trips, neighborhood cruising, and everyday errands. Powered by a responsive motor with responsive power delivery and pedal-assist support, it delivers approachable performance up to city-friendly speeds, while a practical battery system and useful everyday range help support regular day-to-day riding. Its compact proportions help keep the ride manageable and approachable. compact wheels and city-friendly proportions help the bike stay practical for everyday use.
This product is not currently in store, but it can be ordered right now.
Key Features
- High-torque hub motor: 48V, 750W with 105Nm torque and 1400W peak power for strong acceleration and hill-climbing performance.
- Up to 75 miles of pedal-assist range: Rated up to 75 miles on pedal assist and up to 50 miles on throttle (test reference: a 187-lb rider using PAS 1 in Eco mode on flat roads).
- Full suspension comfort: 120mm travel air suspension fork with lock-out, rebound adjustability, and a DNM air rear shock paired with 80mm rear wheel travel.
- SensorSwap™ torque/cadence: Torque and cadence sensor support for tailored ride feel across different surfaces and riding styles.
- Large-load capability: 560 lbs max bike load and 120 lbs rear rack load capacity with a MIK HD Compatible alloy rear rack.
- Fat-tire traction: KENDA 26x4.0" puncture-resistant tires for stability on loose, rough, or mixed terrain.
- Confident braking: Tektro hydraulic disc brakes with 203mm front and 180mm rear rotors, plus brake levers with power cutoff.
- Smart display + charging: 3.5" full-color high-brightness display with Bluetooth and adjustable angle, plus a USB Type-C phone charge port.
- Integrated lighting: Light sensing 130 Lux / 500 LM high-output integrated LED front light; rear light integrated with rear rack featuring braking indicator and turn signal with steady/flash modes.
- Class flexibility: Class 1/2/3 capable with default max speed of 20 MPH and adjustable range of 12~28 MPH.
- Step-Thru fit: Step-Thru fits 4'11'' - 5'10''.
Specifications
| Feature | Details |
|---|---|
| eBike Size Options | Step-Thru |
| User Height Range | Step-Thru: 4'11'' - 5'10'' |
| Frame | Triple-Butted Aluminum Alloy, Rear Wheel 80mm Travel |
| Fork | Air suspension 120mm travel with Lock-out, Nutted, Rebound adjustable |
| Rear Shock | DNM Air suspension, 165mm x 38mm Travel |
| Motor Hub | 48V, 750W, 105Nm |
| Motor Peak Power | 1400W Peak |
| Battery | 48V, 16.7Ah (801.6Wh), IPX7, Certificated by UL 2271 |
| Cell | Samsung/LG 21700 cell, Certificated by UL 2580 |
| Charger | 48V, 3.0A Fast Charger |
| Display | 3.5" Full color, High brightness, Bluetooth, Adjustable angle |
| Sensor | Torque and Cadence Sensor |
| USB Port | USB Type-C phone charge |
| Throttle Assist | Trigger-control, removable |
| Pedal Assist | 3 Riding Modes x 5 PAS Levels |
| Walk Mode | 2.9 MPH |
| Front Light | Light sensing 130 Lux /500 LM high-output integrated LED, adjustable angle |
| Rear Light | Braking Indicator, turn signal, rear light steady/flash, integrated with rear rack |
| App & Apple Find My™ | APP OTA & Find My |
| Max Speed (Default) | 20 MPH |
| Max Speed Adjustable Range | 12~28 MPH |
| Class | 1/2/3 |
| Throttle Range | 50 Miles |
| Pedal Assist Range | 75 Miles |
| Chainrings | 48T |
| Crankset | Aluminum Alloy, 170mm |
| Freewheel | 8-speed, 11-40T |
| Chain | 8-speed |
| Rear Derailleur | SHIMANO 8-speed |
| Shift Lever | SHIMANO 8-speed |
| Brake | Tektro Hydraulic Disc Brake |
| Rotors | 203mm Front/180mm Rear |
| Brake Levers | Aluminum Alloy, with power cutoff |
| Rims | Aluminum alloy |
| Front Hub | Aluminum alloy, nutted |
| Tire | KENDA 26x4.0" eBike puncture-resistant tires |
| Handlebar | Aluminum Alloy, Φ31.8mm, 700mm |
| Grips | Durable ergonomic grips, lockable |
| Stem | Adjustable, Aluminum Alloy, Φ31.8mm, 60mm(ST)/90mm(HS) |
| Saddle | VELOTRIC comfort ergonomic seat |
| Seatpost | Aluminum Alloy, Φ30.9mm |
| Clamp | Aluminum Alloy, quick release |
| Fenders | Front and rear full coverage |
| Rear Rack | MIK HD Compatible Alloy |
| Pedals | Plastic |
| Kickstand | Aluminum Alloy, included, rear mount |
| eBike Weight | 80lbs |
| Max Bike Load | 560lbs |
| Rear Rack Load Capacity | 120 lbs |
| UL Certification | UL 2849 |
| ISO Standard | ISO 4210 |
Assembly & Build Options
The “In a Box” option is delivered in the manufacturer’s original packaging and arrives unassembled. Professional assembly will be required prior to riding, including proper installation, torque verification, and safety inspection of all components.
This option does not include assembly services, safety inspection, tuning, or ongoing service support from our retail location. All warranty claims, technical support, and product-related concerns must be handled directly with Velotric through the manufacturer’s official support channels.
Manufacturers Warranty: https://www.velotricbike.com/pages/warranty
User Manual: https://cdn.shopify.com/s/files/1/0877/9435/2404/files/eBike_Velotric_Nomad_2X_User_Manual.pdf?v=1770585353
Why Choose This Model?
What helps the Velotric Nomad 2X - Step Thru - Obsidian - In a Box stand apart is the way it combines compact proportions with practical electric-bike capability. With its responsive motor, speeds up to controlled, compact setup, its battery system, and useful daily range, it presents a useful balance of approachability and everyday function.
Customers shopping with Escondido eBike Super Shop may appreciate how naturally it fits into short trips, errands, and everyday transportation.
Explore More
Explore more commuter-friendly, compact, and city-ready eBikes at Escondido eBike Super Shop, where everyday practicality, approachable design, and useful electric mobility remain central to the lineup.
Escondido eBike Super Shop supports local riders in Escondido and San Diego while also giving customers nationwide access through shipping available across the USA.
