eBike Velotric GoMad - Obsidian - In a Box
Velotric GoMad - Obsidian - In a Box Electric Bike
Velotric authorized dealer in San Diego & EscondidoVelotric warranty & support for Ready to Ride eBikes
Escondido eBike Super Shop serves the Escondido, San Diego, and greater Southern California community with local pickup support as well as shipping service.

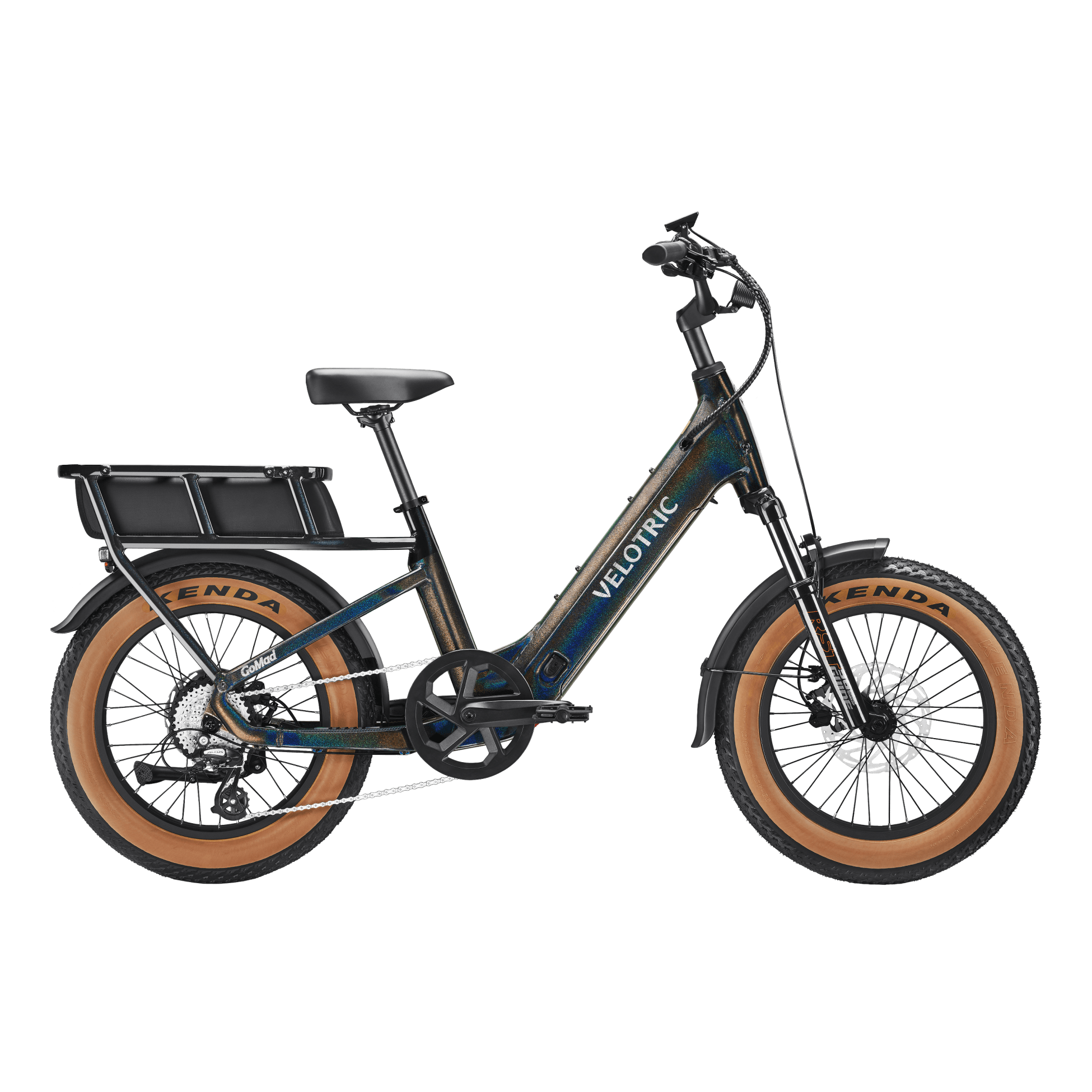

The Velotric GoMad - Obsidian - In a Box is a compact electric bike built for riders who want an easy, stylish way to handle short trips, neighborhood cruising, and everyday errands. Powered by a responsive motor with responsive power delivery and pedal-assist support, it delivers approachable performance up to city-friendly speeds, while a practical battery system and useful everyday range help support regular day-to-day riding. Its compact proportions help keep the ride manageable and approachable. compact wheels and city-friendly proportions help the bike stay practical for everyday use.
This product is currently available in store right now.
Key Features
- High-Torque Utility Power: 48V 750W motor with 1,300W peak power and 85Nm torque for confident climbing and load-carrying performance.
- Long-Range 801.6Wh Battery: 48V 16.7Ah (801.6Wh) battery with UL2271 certification and IPX7 rating; up to 75 miles pedal assist and 50 miles on throttle.
- SensorSwap™ Control: Switch between torque sensing and cadence sensing with one click for tuned ride feel across different terrain.
- Comfort & Stability Up Front: RST hydraulic suspension fork with 100mm travel and lockout to smooth rough streets and paths.
- 20" × 4.0" Fat Tires: KENDA 20x4.0" puncture-resistant eBike tires for grip and confidence on mixed surfaces.
- Heavy-Duty Carrying Capacity: 500 lbs max load capacity with a 176 lbs-rated integrated MIK HD-compatible rear rack.
- Class 1/2/3 Capable: Adjustable speed range 12–28 MPH with max speed default at 20 MPH.
- Hydraulic Disc Braking: Tektro hydraulic disc brakes with 203mm front and 180mm rear rotors for strong stopping power.
- Smart Security & Connectivity: Apple Find My & Google's Find Hub support, NFC card unlock, Bluetooth-enabled 3.5" full-color display, and app OTA.
- Fit Range for More Riders: One size fits riders from 5'0" to 6'3" with adjustable handlebar, stem, and saddle height range.
Specifications
| Feature | Details |
|---|---|
| eBike Size | One Size |
| User Height Range | 5'0'' ~ 6'3'' |
| Color | Obsidian |
| Frame | Triple-Butted Aluminum Alloy |
| Fork | RST hydraulic suspension, 100mm travel with lock-out, 36mm inner tube |
| Motor | 48V, 750W (1300W peak power), 85Nm |
| Battery | 48V, 16.7Ah (801.6Wh), IPX7, certificated by UL2271 |
| UL Certification | UL2849 & UL2271 |
| ISO Standard | ISO 4210 |
| Cell | Samsung/LG 21700 cell, certificated by UL2580 |
| Charger | 48V, 3A fast charger |
| Sensor | Torque and cadence sensor |
| Display | 3.5" full color, high brightness, Bluetooth, NFC, adjustable angle |
| USB Port | USB Type-C phone charge |
| Throttle | Trigger-control, removable |
| Pedal Assist | 5 riding modes + Stealth Mode / Ride Tuning |
| Walk Mode | 2.9MPH / Walk & Hold |
| Front Light | 500LM high-output integrated LED, adjustable angle |
| Rear Light | Braking indicator, turn signal, steady/flash, integrated with rear rack |
| Water Resistance | IPX6 (whole eBike) |
| App | App OTA |
| Anti-theft | Apple Find My & Google's Find Hub, NFC card unlock |
| eBike Class | Class 1/2/3 |
| Max Speed (Default) | 20MPH |
| Max Speed Adjustable Range | 12~28MPH |
| Pedal Assist Range | 75 miles |
| Throttle Range | 50 miles |
| Drivetrain | SHIMANO 8-speed |
| Freewheel | 8-speed, 11-34T |
| Rear Derailleur | SHIMANO 8-speed |
| Shift Lever | SHIMANO 8-speed |
| Chain | KMC 8-speed |
| Chainrings | 52T narrow-wide chainring |
| Crankset | Aluminum alloy, 165mm |
| Brakes | Tektro hydraulic disc brake |
| Rotors | 203mm front / 180mm rear |
| Rims | Aluminum alloy |
| Front Hub | NOVATEC aluminum alloy, 15x135mm thru-axle |
| Tires | KENDA 20x4.0" eBike puncture resistant tires |
| Handlebar | BMX style, 31.8mm bar clamp, 700mm |
| Grips | Durable ergonomic grips, lockable |
| Stem | Quill stem, 31.8mm clamp, 30mm length, 140mm vertical adjustment range |
| Saddle | VELOTRIC comfort ergonomic seat |
| Seatpost | Aluminum alloy, Ф30.9mm |
| Clamp | Aluminum alloy, quick release |
| Fenders | Plastic, front and rear full coverage |
| Rear Rack | MIK HD compatible, integrated with frame |
| Rear Rack Bag | Included as standard equipment |
| Pedals | Plastic |
| Kickstand | Aluminum alloy, included, rear mount |
| eBike Weight | 77 lbs |
| eBike Weight (Without Battery) | 67 lbs |
| Rear Rack Load Capacity | 176 lbs |
| Max eBike Load Capacity | 500 lbs |
| Geometry | GoMad-Step_FTD_PC |
| Reach | 420mm |
| Handlebar Height | 1040-1180mm |
| Wheelbase | 1171mm |
| Stand-Over Height | 500mm |
| Min Saddle Height | 720mm |
| Max Saddle Height | 930mm |
| Total Length | 1811mm |
Manufacturers Warranty: https://www.velotricbike.com/pages/warranty
Assembly & Build Options
The “In a Box” option is delivered in the manufacturer’s original packaging and arrives unassembled. Professional assembly is required prior to riding, including proper installation, torque verification, and a complete safety inspection of all components.
This option does not include assembly services, safety inspection, tuning, or ongoing service support from our retail location. All warranty claims, technical support, and product-related concerns must be handled directly with Velotric through the manufacturer’s official support channels.
Why Choose This Model?
What helps the Velotric GoMad - Obsidian - In a Box stand apart is the way it combines compact proportions with practical electric-bike capability. With its responsive motor, speeds up to controlled, compact setup, its battery system, and useful daily range, it presents a useful balance of approachability and everyday function.
Customers shopping with Escondido eBike Super Shop may appreciate how naturally it fits into short trips, errands, and everyday transportation.
Explore More
Explore more commuter-friendly, compact, and city-ready eBikes at Escondido eBike Super Shop, where everyday practicality, approachable design, and useful electric mobility remain central to the lineup.
Escondido eBike Super Shop supports local riders in Escondido and San Diego while also giving customers nationwide access through shipping available across the USA.
