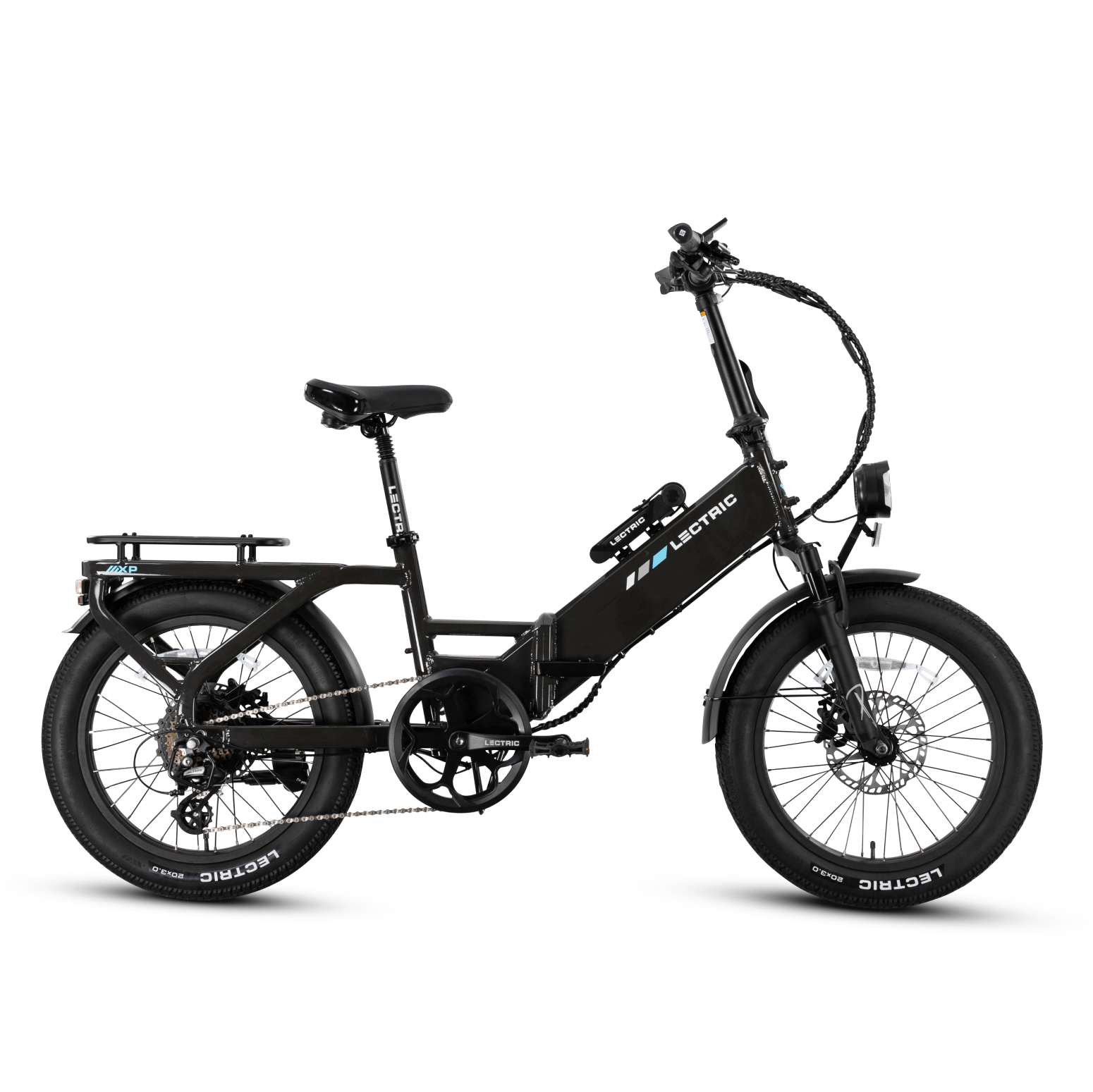

eBike Lectric XP4 - 500W - Step Thru - Tempest Gray - In a Box
Lectric XP4 - 750W - Step Thru - Tempest Gray - In a Box Electric Bike
Lectric authorized dealer in San Diego & EscondidoEscondido eBike Super Shop serves the Escondido, San Diego, and greater Southern California community with local pickup support as well as shipping service.
The Lectric XP4 - 500W - Step Thru - Tempest Gray - In a Box is a compact electric bike built for riders who want an easy, stylish way to handle short trips, neighborhood cruising, and everyday errands. Powered by a responsive motor with responsive power delivery and pedal-assist support, it delivers approachable performance up to city-friendly speeds, while a practical battery system and Up to 50 miles per charge** help support regular day-to-day riding. Its compact proportions help keep the ride manageable and approachable. compact wheels and city-friendly proportions help the bike stay practical for everyday use.
Key Features
- Foldable electric utility design: Fully foldable hinge at both the handlebar stem and frame helps the XP4 fit into compact spaces for storage and transport.
- Torque sensor assistance: Proprietary in-house-designed torque sensor programming manages power output based on pedaling effort for smoother power distribution, improved control, and better efficiency.
- Stealth M24 rear hub motor: 500W rear hub motor with 1092W peak and 55Nm torque for quick, responsive acceleration with a quieter ride experience.
- Integrated & removable battery: 48V, 10.4Ah (500Wh) lithium-ion battery (UL 2271 certified) powers rides up to 50 miles on a single charge (range can vary).
- Class 1/2/3 capable riding modes: Five riding modes (Eco, Tour, Sport, Sport+, Turbo) enable Class 1, 2, or 3 configuration where permitted by state law.
- Hydraulic stopping power: 602 hydraulic brakes with 180mm rotors (2.3mm thick) for confident braking in wet or dry conditions.
- Full-color TFT display: Detachable, backlit 3.5” TFT color display with intuitive menus and a USB-C charge port; IP-X5-rated for added water resistance.
- Safety lighting + turn signals: Integrated 90-lumen headlamp with side amber lights, brake-activated rear light, and turn signals powered by the internal battery.
- Utility-ready rear rack: Integrated rear rack supports up to 150 lbs and includes mounting bosses for accessory combinations; LevelUp Rack (sold separately) expands options.
- Puncture-resistant tires with Slime: 20” x 3” tires with Slime installed at no additional cost for flat prevention and smoother mixed-terrain riding.
- Keyless riding: Power the eBike on/off with the push of a button and ride without the key in the battery (keys needed for battery removal only).
- 8-speed drivetrain: Shimano Altus derailleur with an 11–32T, 8-speed freewheel and below-the-bar trigger shifter for efficient cadence control.
Specifications
| Feature | Details |
|---|---|
| Model / Frame | XP4 Step-Thru |
| Color | Tempest Gray |
| eBike Type | Foldable Electric Utility eBike |
| Riding Modes | 5 riding modes (Eco, Tour, Sport, Sport+, Turbo); Class 1, 2, or 3 capable* |
| Throttle | Thumb throttle (below-the-bar trigger throttle on left-hand side) |
| Motor | Stealth M24 rear hub motor, 500W (1092W peak), 55Nm torque |
| Battery | Integrated & removable 48V, 10.4Ah (500Wh) lithium-ion battery (UL 2271 certified) |
| Range | Up to 50 miles per charge** |
| Motor Controller | 20amp internal controller, IP-X5 rated, potted for weatherproofing and thermal management |
| Sensor | Torque sensor (in-house-designed programming) |
| Display | Detachable backlit 3.5” TFT color display; USB-C port; IP-X5-rated display |
| Brakes | 602 hydraulic brakes |
| Rotors | 180mm rotors (2.3mm thick) |
| Drivetrain | 11–32T, 8-speed freewheel; Shimano Altus derailleur; below-the-bar trigger shifter |
| Crankset | Forged aluminum, 56-tooth custom chainring |
| Chain | KMC Z8 steel chain with inner plate chamfering |
| Tires | Puncture-resistant 20” x 3” tires with Slime installed |
| Suspension | Suspension fork (tension adjustable / lockout) |
| Lights | 90-lumen headlamp with side amber lights; brake-activated rear light |
| Turn Signals | Integrated turn signals (left/right arrows on button pad) |
| Rear Rack Capacity | 150 lbs |
| Payload Capacity | Max: 330 lbs |
| Weight (without battery) | 62 lbs |
| Battery Weight | 7 lbs |
| Unfolded Size | 66"L x 18.5"W x 47"H |
| Folded Size | 37"L x 17"W x 29"H |
| Stand Over Height | 19" |
| Rider Height Range | 4’10” - 6’3” |
| Handlebar Height | 45"–48" (adjustable) |
| Handlebar Width | 25" |
| Handlebar Reach | 15"–18" |
| Seat to Ground | Max: 42” / Min: 29.5” |
| Rear Rack Size | 13.5L x 6.5W (150lb capacity) |
| Charging | Auxiliary charging port near bottom bracket; includes 2amp charger (4–6 hour charging). Optional 5amp Fast Charger can charge standard battery in as little as 2 hours. |
| Frame | 6000 series aluminum; redesigned frame with mounting points for accessory combinations |
| Fenders | Polypropylene fenders with flared tail |
| Kickstand | Heavy-duty steel folding kickstand (side-sweeping) |
| Pedals | 6000 Series Aluminum quick-release pedals with splined inserts |
| Grips | Full-length ergonomic lock-on grips |
| Stem | Adjustable handlebar stem (zero-degree stem; telescoping functionality) |
| Seatpost | Telescoping seat post with quick-release collar |
| Certifications | UL 2849 (eBike); battery UL 2271 |
| Assembly | One-minute, tool-free assembly (unfold stem assembly, insert stem & handlebars, attach pedals and display) |
Assembly & Build Options
The “In a Box” option is delivered in the manufacturer’s original packaging and arrives unassembled. Professional assembly is required prior to riding, including proper installation, torque verification, and a full safety inspection.
This option does not include assembly services, safety inspection, tuning, or ongoing service support from our retail location. Manufacturer support and product-related concerns are handled through the brand’s official support channels.
Warranty & Manual
Manufacturers Warranty: https://lectricebikes.com/pages/lectric-ebikes-manufacturers-warranty
Why Choose This Model?
What helps the Lectric XP4 - 500W - Step Thru - Tempest Gray - In a Box stand apart is the way it combines compact proportions with practical electric-bike capability. With its responsive motor, speeds up to controlled, compact setup, its battery system, and Up to 50 miles per charge**, it presents a useful balance of approachability and everyday function.
Customers shopping with Escondido eBike Super Shop may appreciate how naturally it fits into short trips, errands, and everyday transportation.
Explore More
Explore more commuter-friendly, compact, and city-ready eBikes at Escondido eBike Super Shop, where everyday practicality, approachable design, and useful electric mobility remain central to the lineup.
Escondido eBike Super Shop supports local riders in Escondido and San Diego while also giving customers nationwide access through shipping available across the USA.
