eBike Brakes - TRP DH-R EVO Disc Brakes

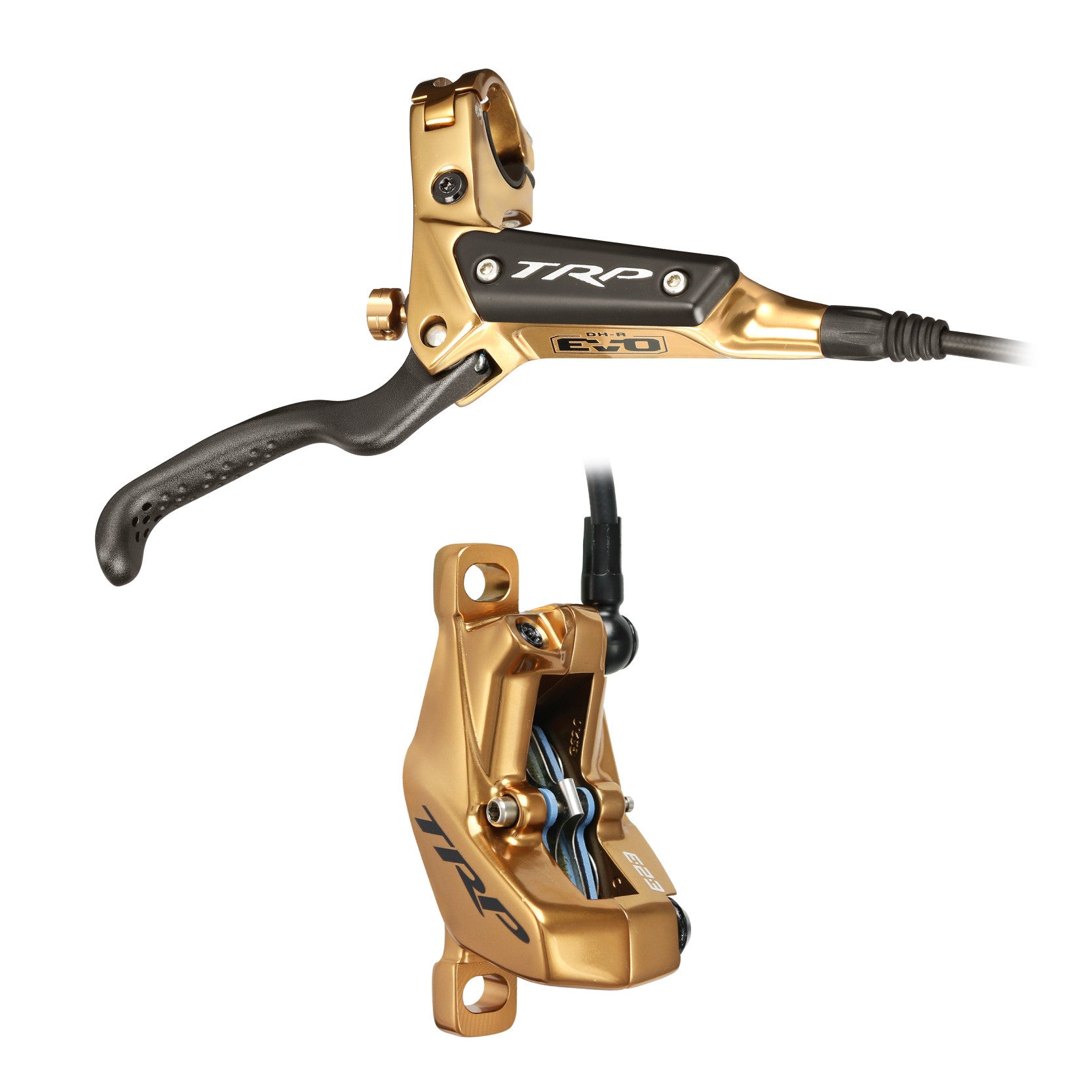

DH-R EVO
HD-M846
Our most powerful brake for the demand of DH, Enduro and E-MTB racing. Designed with a 9mm lever piston for an ultra-light lever modulation and connection with the tire contact patch.
Caliper
• Optimized hydraulic flow
• Hinged lever clamp
• Lightweight hybrid pistons
• 5mm brake hose
• Made for 2.3mm thick rotors
• Top loading pad design
• High polished silver grey
Rotor
• Thickness: 2.3mm
• Six bolt: RS01E
• Centerlock: RC01E
Lever
• Ergonomic lever blade
• Index reach adjuster
• I-Spec II compatible
• I-Spec EV adatper option
• TRP and MMX shifter adapter available
Pads
• Performance Resin - P-Q12RS
• Overall Balanced Resin - Q20.11
• Sintered - P-Q15TS
Weight
310 g / wheel
(without rotor and adapter)
