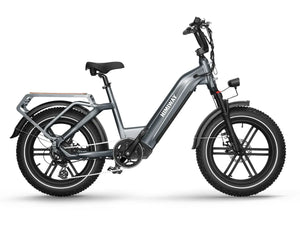

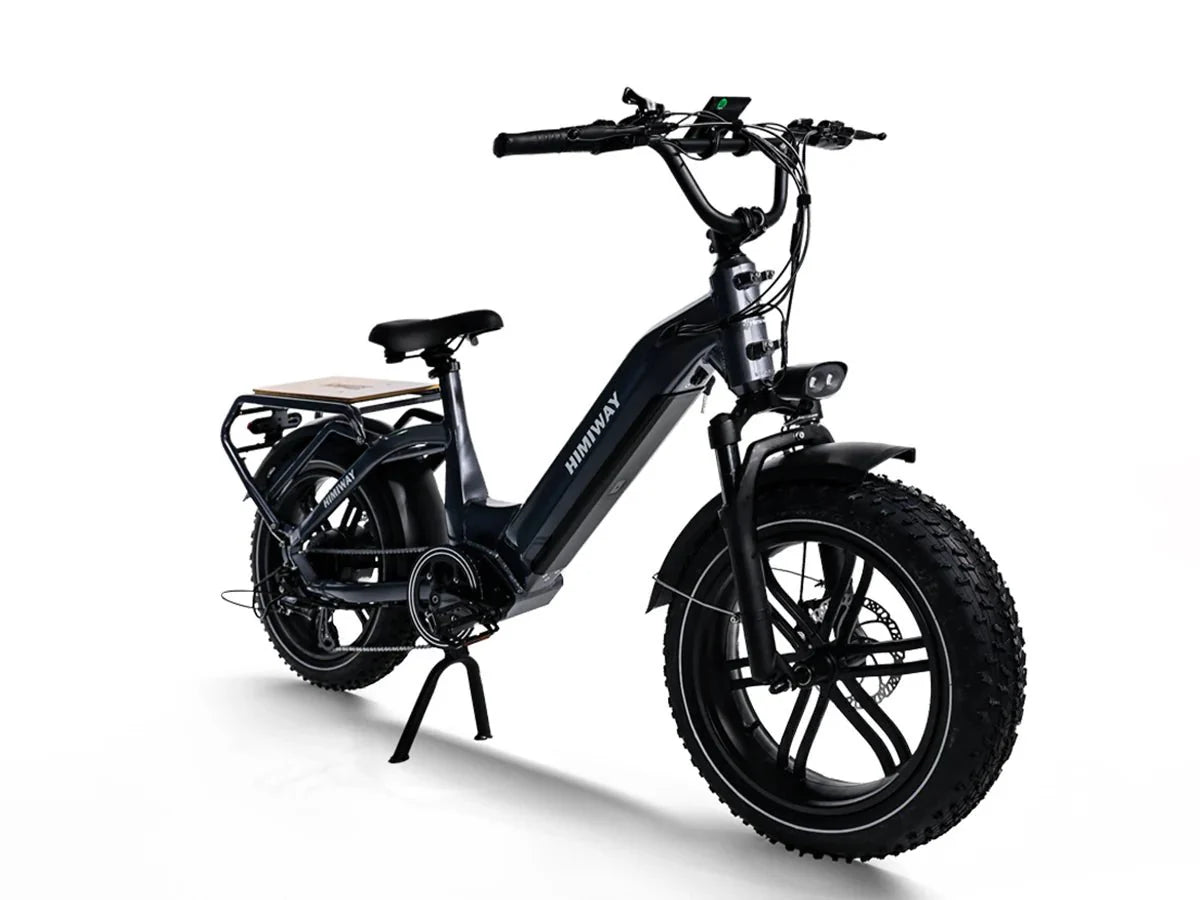

HIMIWAY Big Dog 750 w Step Thru Ebike 20x4 Fat Electric Cargo eBike
The HIMIWAY Big Dog Step Thru eBike is a Fat electric bike with a powerful 750 w motor and a long distance 48v 20 ah battery. With 20 inch Fat tires, 7 Speed's and Hydraulic brakes this Electric Cargo eBike ebike is a Class 2, with a top speed up to 20 - 25 mph. An optimal distance of 80 miles and charge time of 4 - 6 hrs. This HIMIWAY Big Dog Step Thru electric bike is 88.6lbs with a maximum cargo weight of 400lbs. The HIMIWAY Big Dog comes in the following colors: Grey.
| Component | Details |
|---|---|
| Frame | 6061 Aluminum frame |
| Headset | Neco A16M 444430 |
| Fork | Alloy fork 135mm@28.625.4270mm lockout & preload adjustable |
| Shock | Alloy front suspension fork with lockout and adjustment |
| Front Wheel | Aluminum integrated wheel |
| Rear Wheel | Aluminum integrated wheel |
| Tires | Kenda K1188 Krusade 20x4.0 |
| Battery | Samsung/LG 48V 20Ah |
| Motor | 750W brushless gear motor |
| Display | LCD display with USB charging |
| Throttle | Half twist throttle |
| Sensors | Cadence sensor, speed sensor, brake sensor |
| Crankset | Crank arm: IXF-212FA forged alloy 170mm |
| Freewheel | Shimano MF-TZ500-7 14-28T |
| Chain | KMC Z8.3-EPT 114L |
| Groupset | Shimano Altus M310 7 Speed |
| Front Brake | Tektro ARIES MD-M300 mechanical disc brakes |
| Rear Brake | Tektro ARIES MD-M300 mechanical disc brakes |
| Rotors | Tektro TR180-24 F:180mm R:180mm |
| Stem | MA-5040 28.6*31.8mm |
| Handlebar | YC-B086 22.231.8720mm |
| Seatpost | JY-SP311 34*350mm |
| Saddle | Selle Royal A054UE |
| Pedal | Aluminum pedal |
| Lights | 48V LED light |
| Kickstand | Heavy-duty aluminum kickstand |
| Range | 60-80 miles |
| Controller | 48V/22A |
| Charger | US standard 3.0 A smart charger |
| Rider Height | 5'1" ~ 6'5" |
| Weight | 88.6 lb. (with battery) |
| Max. System Weight | 400 lb. |
