eBike Velotric GoMad

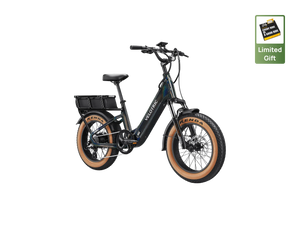

Velotric GoMad Electric Bike
Velotric authorized dealer in San Diego & Escondido
Velotric warranty & support for Ready to Ride eBikes
The Velotric GoMad electric bike is a compact, full-power 20" × 4.0" fat tire utility eBike built for carrying cargo, handling passengers, and confidently tackling daily errands, commuting, and mixed-surface exploring. A 48V 750W motor (1300W peak) with 85Nm of torque pairs with an 801.6Wh battery for up to 75 miles of pedal-assist range, while 100mm RST suspension with lockout helps smooth rough roads. With SensorSwap™ torque/cadence control, Class 1/2/3 capability up to 28 MPH, and a high-capacity 500 lb max payload with a 176 lb-rated MIK HD rear rack, the GoMad is designed for riders who want real utility without giving up premium ride quality.
Key Features
-
High-Torque Utility Motor: 48V 750W motor with 1300W peak power and 85Nm torque for steep climbs and heavy loads.
-
801.6Wh Battery System: 48V 16.7Ah (801.6Wh) battery with IPX7 rating and UL2271 certification.
-
SensorSwap™ Control: Switch between torque and cadence sensors to match how you want the eBike to respond.
-
Class 1/2/3 Capable Speed Range: Adjustable max speed range of 12–28 MPH (default max speed: 20 MPH).
-
Fat Tire Stability: KENDA 20x4.0" puncture-resistant eBike tires for confident traction and load-carrying support.
-
100mm RST Suspension w/ Lockout: Hydraulic suspension fork with 100mm travel and lock-out for comfort and efficiency.
-
Heavy-Duty Carrying Capacity: 500 lb max load capacity with a 176 lb-rated MIK HD-compatible rear rack integrated with the frame.
-
Confident Braking: Tektro hydraulic disc brakes with 203mm front and 180mm rear rotors, plus power cutoff brake levers.
-
Integrated Lighting & Visibility: 500LM integrated front light and integrated rear rack light with braking indicator and turn signal functions.
-
One-Size Fit & Adjustable Cockpit: Fits riders 5'0"–6'3" with an adjustable handlebar and stem.
- Connected Features & Security: Apple Find My & Google’s Find Hub compatibility, NFC card unlock, and a 3.5" full-color high-brightness Bluetooth display.
- Water Resistance: IPX6-rated whole eBike with an IPX7-rated battery.
Specifications
| Feature | Details |
|---|---|
| Model | Velotric GoMad |
| Color | Dark Amber |
| Bike Size | One Size |
| User Height Range | 5'0'' ~ 6'3'' |
| Frame | Triple-Butted Aluminum Alloy |
| Fork | RST Hydraulic Suspension 100mm Travel with Lock-out, 36mm Inner Tube |
| Motor | 48V, 750W, (1300W Peak Power), 85Nm |
| Battery | 48V, 16.7Ah (801.6Wh), IPX7, Certificated by UL2271 |
| Cell | Samsung/LG 21700 cell, Certificated by UL2580 |
| Charger | 48V, 3A Fast Charger |
| Sensor | Torque and Cadence Sensor |
| Display | 3.5" Full Color, High Brightness, Bluetooth, NFC, Adjustable Angle |
| USB Port | USB Type-C phone Charge |
| Throttle | Trigger-control, Removable |
| Pedal Assist | 5 Riding Modes+Stealth Mode /Ride Tuning |
| Walk Mode | 2.9MPH/ Walk & Hold |
| Front Light | 500LM High-output Integrated LED, Adjustable Angle |
| Rear Light | Braking Indicator, Turn Signal, Rear Light Steady/Flash, Integrated with Rear Rack |
| Water Resistant | IPX6 |
| App | App OTA |
| Anti-theft | Apple Find My & Google's Find Hub，NFC Card Unlock |
| Max Speed (Default) | 20MPH |
| Max Speed Adjustable Range | 12~28MPH |
| Ebike Class | 1/2/3 |
| Pedal Assist Range | 75 Miles |
| Throttle Range | 50 Miles |
| Chainrings | 52T Narrow-Wide Chainring |
| Crankset | Aluminum Alloy, 165mm |
| Freewheel | 8-speed,11-34T |
| Rear Derailleur | SHIMANO 8-speed |
| Shift Lever | SHIMANO 8-speed |
| Chain | KMC 8-speed |
| Brake | Tektro Hydraulic Disc Brake |
| Rotors | 203mm Front/180mm Rear |
| Brake Levers | Aluminum Alloy, with Power Cutoff |
| Rims | Aluminum Alloy |
| Front Hub | NOVATEC Aluminum Alloy, 15x135mm Thru-axle |
| Tire | KENDA 20x4.0" eBike Puncture Resistant Tires |
| Handlebar | BMX Style, 31.8mm Bar Clamp, 700mm |
| Grips | Durable Ergonomic Grips, Lockable |
| Stem | Quill Stem, 31.8mm Clamp, 30mm Length, 140mm Vertical Adjustment Range |
| Saddle | VELOTRIC Comfort Ergonomic Seat |
| Seatpost | Aluminum Alloy, Ф30.9mm |
| Clamp | Aluminum Alloy, Quick Release |
| Fenders | Plastic, Front and Rear Full Coverage |
| Rear Rack | MIK HD Compatible，Integrated with Frame |
| Pedals | Plastic |
| Kickstand | Aluminum Alloy, Included, Rear Mount |
| Rear Rack Bag | Included as Standard Equipment |
| Bike Weight | 77 lbs |
| Bike Weight (Without Battery) | 67 lbs |
| Rear Rack Load Capacity | 176 lbs |
| Max Bike Load Capacity | 500 lbs |
| UL Certification | UL2849 & UL2271 |
| ISO Standard | ISO 4210 |
| Geometry | GoMad-Step_FTD_PC |
| Reach | 420mm |
| Handlebar Height | 1040-1180mm |
| Wheelbase | 1171mm |
| Stand-Over Height | 500mm |
| Min Saddle Height | 720mm |
| Max Saddle Height | 930mm |
| Total Length | 1811mm |
Manufacturers Warranty: https://www.velotricbike.com/pages/warranty
Assembly & Build Options
The “In a Box” option is delivered in the manufacturer’s original packaging and arrives unassembled. Professional assembly will be required prior to riding, including proper installation, torque verification, and safety inspection of all components.
This option does not include assembly services, safety inspection, tuning, or ongoing service support from our retail location. All warranty claims, technical support, and product-related concerns must be handled directly with Velotric through the manufacturer’s official support channels.
The “Ready to Ride” option includes full professional assembly by our certified technicians. Each eBike is carefully built, safety-checked, tuned, and test-ridden to ensure optimal performance and reliability before pickup.
Your eBike will be fully prepared for immediate riding from our retail location — no setup required. In the event of a manufacturer-covered warranty issue, our service team will coordinate directly with Velotric on your behalf, including parts processing and warranty facilitation.
Why Choose This Model?
The Velotric GoMad is purpose-built for riders who want compact dimensions with true utility performance. Its 500 lb max payload, 176 lb-rated MIK HD rear rack, and 20" × 4.0" fat tires create a stable platform for hauling, passengers, and everyday riding. With SensorSwap™ torque/cadence control, Class 1/2/3 capability up to 28 MPH, and premium safety details like Tektro hydraulic disc brakes and integrated lighting, the GoMad delivers practical versatility in a refined, modern eBike package.
